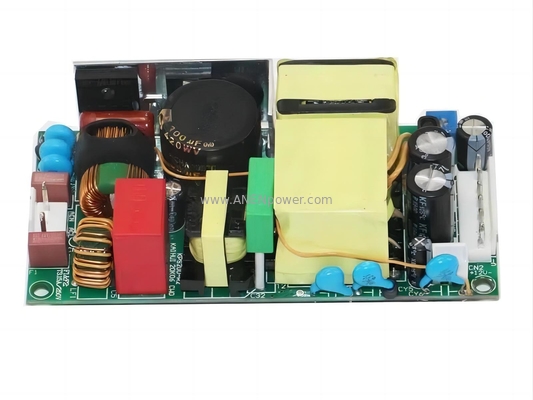

EN/IEC 60601 certified Medical Power Supply 200W 24V 8.5A Customized PCBA

Large Image : EN/IEC 60601 certified Medical Power Supply 200W 24V 8.5A Customized PCBA

Product Details:

Place of Origin:	Shenzhen
Brand Name:	ANENpower
Certification:	UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number:	AP200F

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	Please contact our Sales
Packaging Details:	PE bag / White box / Custom made
Delivery Time:	18~25 working days after receiving the deposit
Payment Terms:	50% deposit, 50% before dispatch
Supply Ability:	500,000.00pcs/month

Contact Now

Detailed Product Description

Power:	100W Max. (without Cooling Fan)	Input:	90~264V AC
Output Voltage:	24V 8.5A	Efficiency:	≥85%
Dimension:	101.650.828mm(LWH)	Weight:	0.2Kg

EN/IEC 60601 certified Medical Power Supply 200W 24V Customized PCBA

^{Standard power supply units often cannot keep up with the many special requirements. Whether they include solutions for short current peaks and fluctuating load profiles in drive technology, the potting of electronics for use in damp rooms, or the strictest measures for patient protection in medical technology – with our leading expertise, we are your reliable experts for customized power supply units!}

^{*Universal Input: 90~264V AC 47/63Hz

*Safety: UL/CUL/TUV/GS/CE/CCC compliance

*RoHS Compliance

*With PFC or without PFC for optional

*High efficiency & Low power consumption

*Short Circuit Protection

*Over Current Protection

*Over Voltage Protection

*Light Weight & Small size}

Model NO.:

AP200F-S24

OUTPUT

DC Output Voltage

24V

Output Rated Current

8.5A

Rated Power

204W without fan; 150W with fan.

Ripple & Noise

300Vp-p

Dc Voltage Adjustable

±10% (for example:5V: -5%~+10%)

Voltage Tolerance

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

INPUT

Voltage Range

90~264V AC

Input Current

1.0A max

Input Frequency

47~63 Hz

Efficiency

＞85%

Inrush Current

30A/230V

Leakage Current

<0.3mA@240V

ENVIROMENT

Working Temp., Humidity

-20~85℃,10~95% RH

Storage Temp., Humidity

-20~85℃,10~95% RH

Temp. Coefficient

±0.03%/℃ (0~50℃)

OTHER

Protection

Hiccup, Automatic recovery, Short Circuit Protection, Over Load Protection, Over Voltage Protection, Over Temp. Protection

Satety & EMC

EN/IEC 62368, EN/IEC 60601, EN/IEC 61347

Dimension

101.6*50.8*28mm(L*W*H)

Weight

0.3Kg

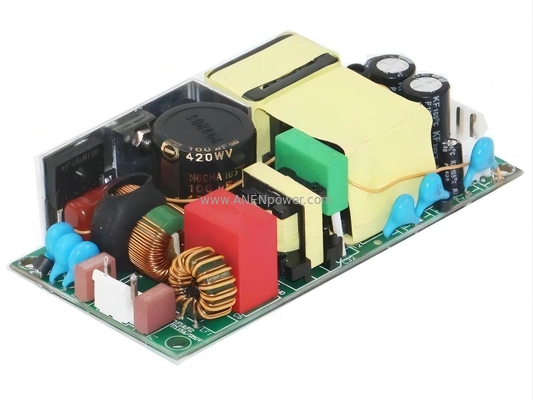

EN/IEC 60601 certified Medical Power Supply 200W 24V 8.5A Customized PCBA

Advantages:

^{1, Custom designed power supply developed and manufactured by us.}

^{2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.}

^{3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.}

^{4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.}

^{5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.}

^{6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.}

^FAQ:
^{1. Are you a trading company or factory?}
^{We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.}

^{2. Do you provide samples?}
^{Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.}

^{3. What’s your MOQ?}
^{Our MOQ is 1000pcs, but for the first order, there is no MOQ.}

^{4. How long is the lead time?}
^{It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.}

^{5. What’s your payment term and shipping term?}
^{Advanced T/T & FOB Shenzhen / Dongguan / Hongkong}

^{6. How long is the warranty?}
^{It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.}
