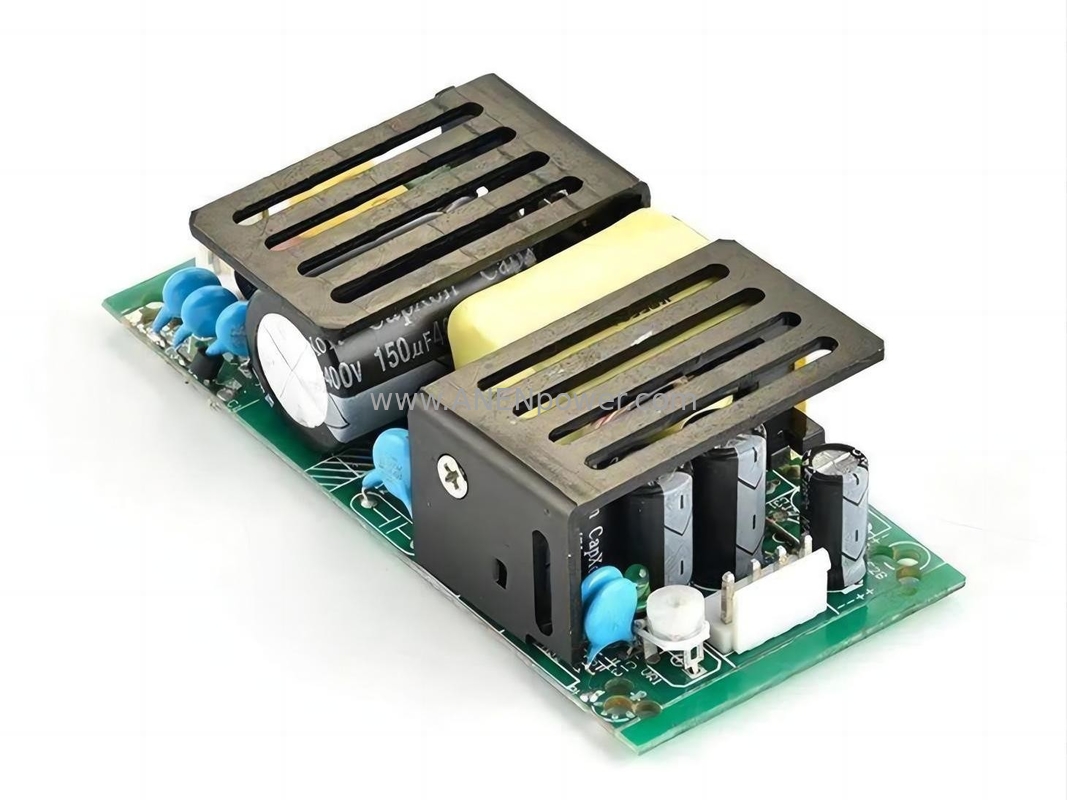

Customized PCBA 12V 10A 120W 24V Beauty Device Switching Power Supply

China Customized PCBA 12V 10A 120W 24V Beauty Device Switching Power Supply supplier
Customized PCBA 12V 10A 120W 24V Beauty Device Switching Power Supply supplier Customized PCBA 12V 10A 120W 24V Beauty Device Switching Power Supply supplier

Large Image :  Customized PCBA 12V 10A 120W 24V Beauty Device Switching Power Supply

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number: AP120F

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Contact Now
Detailed Product Description
Power: 100W Max. (without Cooling Fan) Input: 90~264V AC
Output Voltage: 12V 10A 1 Efficiency: ≥85%
Dimension: 101.5*50.5*27mm(L*W*H) Weight: 0.3Kg

Customized PCBA 12V 10A 120W 24V Beauty Device Switching Power Supply



Standard power supply units often cannot keep up with the many special requirements. Whether they include solutions for short current peaks and fluctuating load profiles in drive technology, the potting of electronics for use in damp rooms, or the strictest measures for patient protection in medical technology – with our leading expertise, we are your reliable experts for customized power supply units!


*Universal Input: 90~264V AC 47/63Hz
*Safety: UL/CUL/TUV/GS/CE/CCC compliance
*RoHS Compliance
*With PFC or without PFC for optional
*High efficiency & Low power consumption
*Short Circuit Protection
*Over Current Protection
*Over Voltage Protection
*Light Weight & Small size



Model NO.: AP120F-S12
OUTPUT DC Output Voltage 12V
Output Rated Current 10A
Rated Power 120W
Ripple & Noise 120Vp-p
Dc Voltage Adjustable ±10% (for example:5V: -5%~+10%)
Voltage Tolerance ±1%
Line Regulation ±0.5%
Load Regulation ±0.5%
INPUT Voltage Range 90~264V AC
Input Current

2.4A@115V AC, 1.2A@230VAC

Input Frequency

47~63 Hz

Efficiency

85%

Inrush Current

Cold start 10A@115V, 20A@230V

Leakage Current <0.5mA@230V
ENVIROMENT Working Temp., Humidity -20~85℃,10~95% RH
Storage Temp., Humidity -20~85℃,10~95% RH
Temp. Coefficient ±0.03%/ (0~50)
OTHER Protection Hiccup, Automatic recovery, Short Circuit Protection, Over Load Protection, Over Voltage Protection, Over Temp. Protection
Satety & EMC EN/IEC 62368, EN/IEC 60601, EN/IEC 61347
Dimension

101.5*50.5*27mm(L*W*H)

Weight 0.3Kg

Customized PCBA 12V 10A 120W 24V Beauty Device Switching Power Supply



Advantages:

1, Custom designed power supply developed and manufactured by us.


2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.


3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.



4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.


5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.


6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.





FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.


2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.


3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.


4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.


5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong


6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
