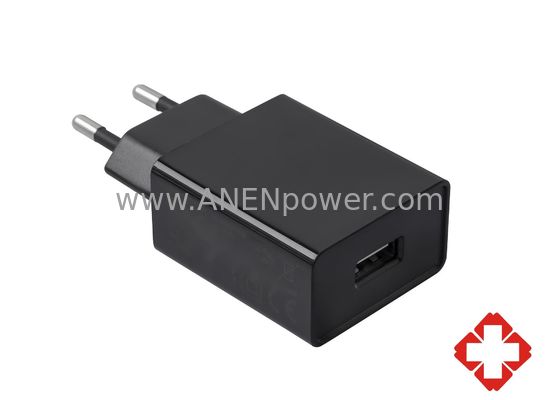

EN 60601 Certified Medical USB Charger 5V 1A 2A 2.4A EU Plug for Blood Glucose Diabetes Monitoring Devices
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 10W Max |
|---|---|---|---|
| Color: | Black Or White, Or Customized Colors As Needed | Regular Output:: | 5V 1A, 5V 2A, 9V 1A, 12V 500mA...etc. |
| Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. | Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA |
| Weight: | 70g | MTBF: | 100,000 Calculated Hours |
EN 60601 Certified Medical USB Charger 5V 1A 2A 2.4A EU Plug for Blood Glucose Diabetes Monitoring Devices
EN/IEC 60601 certified medical-grade USB charger delivering multiple power outputs: 5V 1A, 2A, and 2.4A with EU plug compatibility specifically engineered for blood glucose meters and diabetes monitoring systems. This CE certified power adapter provides stable, uninterrupted energy for critical glucose testing equipment including handheld meters, continuous glucose monitors, and diagnostic devices requiring hospital-grade reliability. Engineered with medical-grade isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure accurate readings and safe operation in clinical environments including hospitals, clinics, and home healthcare settings. The compact design features thermal protection and voltage regulation for daily use where power stability directly impacts patient health monitoring accuracy and treatment decisions. Built to meet stringent European medical safety standards for healthcare professionals and diabetic patients requiring certified performance in critical health monitoring applications.
• Power Range: 10W max
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz

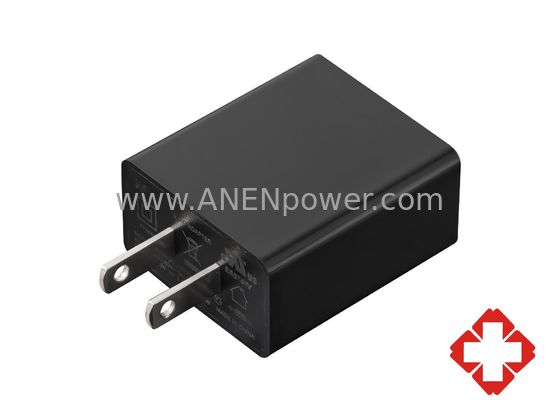

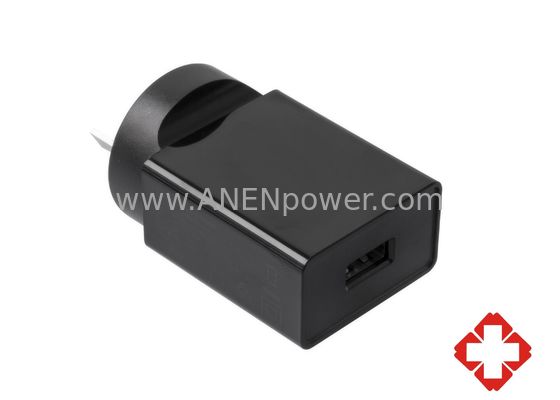

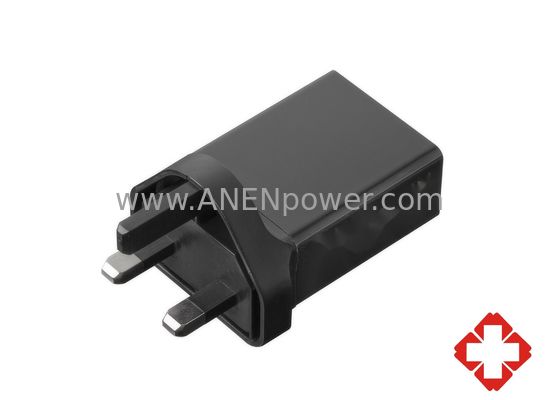

• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~24 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Weight: 70g
|
Model NO. |
MAX OUTPUT POWER |
OUTPUT VOLTAGE |
MIN LOAD |
MAX LOAD |
LOAD REGULATION |
LINE REGULATION |
RIPPLE & NOISE |
|
APM10EA |
5W |
5V |
0A |
1.0A |
±5% |
±1% |
100mV |
|
APM10EB |
10W |
5V |
0A |
2.0A |
±5% |
±1% |
100mV |
|
APM10EC |
6W |
12V |
0A |
500mA |
±5% |
±1% |
180mV |
|
APM10ED |
10W |
24V |
0A |
420mA |
±5% |
±1% |
350mV |
