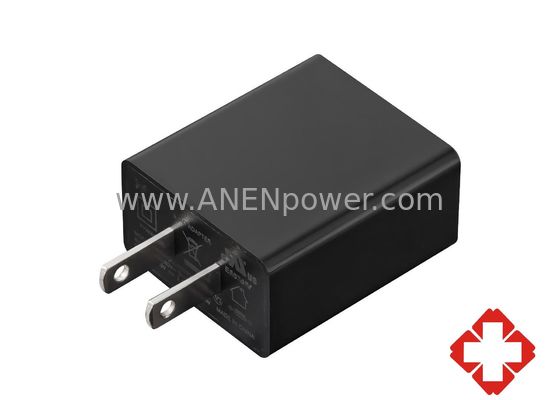

UL 60601 Certified Medical USB Charger 5V 1A 2A 2.4A US Plug for Pulse Oximeters Oxygen Saturation Monitors
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 10W Max |
|---|---|---|---|
| Color: | Black Or White, Or Customized Colors As Needed | Regular Output:: | 5V 1A, 5V 2A, 9V 1A, 12V 500mA...etc. |
| Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. | Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA |
| Weight: | 70g | MTBF: | 100,000 Calculated Hours |
UL 60601 Certified Medical USB Charger 5V 1A 2A 2.4A US Plug for Pulse Oximeters Oxygen Saturation Monitors
UL/IEC 60601 certified medical-grade USB power adapter delivering multiple output options: 5V 1A, 2A, and 2.4A charging capabilities with US plug compatibility specifically designed for pulse oximeters and oxygen saturation monitoring devices. This hospital-grade power supply features medical isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure accurate oxygen level readings and uninterrupted patient monitoring in clinical environments. Engineered for reliability in hospitals, clinics, home healthcare settings, and emergency medical services where power stability directly impacts patient respiratory assessment and critical care decisions. The compact adapter provides thermal protection and precise voltage regulation for continuous operation, meeting stringent UL safety standards and FCC electromagnetic compliance requirements for professional healthcare applications demanding certified performance and electrical safety in life-critical monitoring equipment.
• Power Range: 10W max
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~24 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Weight: 70g
|
Model NO. |
MAX OUTPUT POWER |
OUTPUT VOLTAGE |
MIN LOAD |
MAX LOAD |
LOAD REGULATION |
LINE REGULATION |
RIPPLE & NOISE |
|
APM10UA |
5W |
5V |
0A |
1.0A |
±5% |
±1% |
100mV |
|
APM10UB |
10W |
5V |
0A |
2.0A |
±5% |
±1% |
100mV |
|
APM10UC |
6W |
12V |
0A |
500mA |
±5% |
±1% |
180mV |
|
APM10UD |
10W |
24V |
0A |
420mA |
±5% |
±1% |
350mV |
