Product Details:
Payment & Shipping Terms:
|
Input: | 100-240V AC, 50~60Hz | Output Power: | 36W Max |
---|---|---|---|
Output Voltage: | 5V ~24V | Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
Standard: | TUV BS EN/IEC62368 | Applicants: | Industrial Automation Control, Communication Equipment, Led Lighting, Industrial Control Equipment |
Warranty: | 3~5 Years |

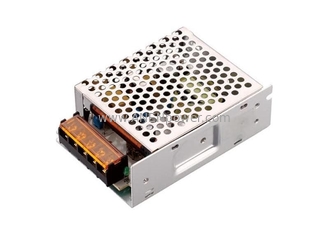

Aluminium case 36W PSU 5V 12V 24V Standard Enclosed Power Supply | AC-DC Converter | High-Efficiency Industrial Power Module
The 36W Aluminium Case PSU is a compact and high-efficiency AC-DC converter designed to meet the needs of industrial applications. With output options of 5V, 12V, and 24V, this power supply provides stable and reliable power for a wide range of devices, ensuring optimal performance in various environments.
Housed in a durable aluminium casing, it offers excellent heat dissipation and protection, extending the lifespan of both the power supply and the equipment it powers. Its compact design makes it ideal for integration into space-limited systems, delivering power without compromising on efficiency or reliability.
Perfect for industrial automation, LED lighting, telecommunications, and other applications, this 36W power supply provides an energy-efficient, cost-effective solution to meet your industrial power needs.
MODEL DETAIL SPEC. | APE036-0504000 | APE036-1203000 | APE036-2401500 | ||||||
INPUT | Input Voltage: | 85-265VAC | |||||||
Input Frequency: | 50/60Hz | ||||||||
Inrush Current: | 60 Amps max. at 240VAC/50Hz,full load | ||||||||
AC Current: | 0.2A/115VAC 0.21A/230VAC | ||||||||
Leakage Current: | <0.25mA/240VAC | ||||||||
Efficiency: | 78% | 80% | 82% | ||||||
OUTPUT | DC Voltage: | 5V | 12V | 24V | |||||
Rated Current: | 4A | 3A | 1.5A | ||||||
Rated Power: | 20W | 36W | 36W | ||||||
Voltage Tolerance: | ±5.0% | ±5.0% | ±5.0% | ||||||
Ripple and Noise: | 75mVp-p | 120mVp-p | 200mVp-p | ||||||
Line Regulation: | ±3% | ||||||||
Load Regulation: | ±5% | ±5% | ±5% | ||||||
Setup, Rise, Hold Up time: | 500ms, 30ms/120ms 230VAC 1000ms, 30ms/25ms 115VAC at full load | ||||||||
ENVIRONMENT AL |
Operating Temperature: | -20 ~ +60 (Refer to "Derating Curve") | |||||||
Storage Temp: | -40℃ ~ 85℃ | ||||||||
Storage Humidity: | 10 ~ 95% RH | ||||||||
Working Humidity: | 20 ~ 95% RH non-condensing | ||||||||
PROTECTION | Over Load: | Above 105% rated output power | |||||||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||
Over Voltage: | 5V:5.75~ 6.75V 12V:13.8 ~ 16.2V 15V:17.25 ~ 20.25V 24V:27.6 ~ 32.4V | ||||||||
Protection type: Shutdown o/p voltage, re-power on to recover | |||||||||
Over Temperature: | Shutdown o/p voltage, re-power on to recover | ||||||||
SAFETY & EMC |
Safety Regulations: | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved | |||||||
Withstand Voltage: | I/P-O/P:3KV AC I/P-FG:2KV AC O/P-FG:0.5KV AC | ||||||||
Isolation Resistance: | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
EMC Emission: | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B |
||||||||
EMC Immunity: | EN/EN61000-4-2,3,4,5,6,8,11 | ||||||||
OTHER | MTBF: | 500Khrs min. MIL-HDBK-217F(25℃) | |||||||
Size: | 110*78*36mm | ||||||||
Weight: | 213g / pcs | ||||||||
Packaging: |
50PCS/CTN |
Advantages:
1, Custom designed power supply developed and manufactured by us.
2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.
3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.
4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.
5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.
6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.
FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.
5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
