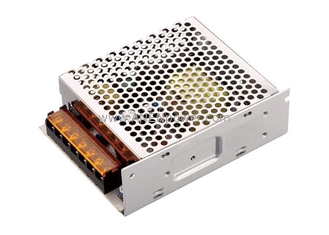

65W Aluminium Case Power Supply - Selectable 5V, 12V, 24V Outputs AC/DC Adapter for Industrial, LED, and Electronic Applications
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100-240V AC, 50~60Hz | Output Power: | 65W Max |
|---|---|---|---|
| Output Voltage: | 5V ~24V | Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
| Standard: | TUV BS EN/IEC62368 | Applicants: | Industrial Automation Control, Communication Equipment, Led Lighting, Industrial Control Equipment |
| Warranty: | 3~5 Years |
65W Aluminium Case Power Supply - Selectable 5V, 12V, 24V Outputs AC/DC Adapter for Industrial, LED, and Electronic Applications
The 65W Aluminium Case Power Supply is a compact and reliable solution designed to meet the diverse power needs of industrial, LED, and electronic applications. Featuring selectable 5V, 12V, and 24V outputs, this AC/DC adapter offers versatile compatibility with a wide range of devices, from industrial machinery to LED lighting systems. The durable aluminium casing ensures excellent heat dissipation, enhancing efficiency and extending the lifespan of the power supply.
Designed for safety and performance, this power supply provides built-in protection against overloads, short circuits, and overvoltage, making it a reliable choice for demanding environments. Its high efficiency and energy-saving design make it an ideal solution for cost-conscious and environmentally friendly applications, ensuring stable and consistent power delivery without excessive energy consumption.
Whether you're powering automation systems, electronic devices, or LED lighting, the 65W Aluminium Case Power Supply offers exceptional versatility, durability, and reliability. Perfect for industrial and commercial applications, this power supply is engineered to meet the high standards required for long-term, trouble-free operation.
| MODEL DETAIL SPEC. | APE065-0506000 | APE065-1205420 | APE065-2402710 | |
| INPUT | Input Voltage: | 85-265VAC | ||
| Input Frequency: | 50/60Hz | |||
| Inrush Current: | Cold start 45A. at 240VAC/50Hz,full load | |||
| AC Current: | 0.2A/115VAC 0.21A/230VAC | |||
| Leakage Current: | ＜0.25mA/240VAC | |||
| Efficiency: | 79% | 84% | 88% | |
| OUTPUT | DC Voltage: | 5V | 12V | 24V |
| Rated Current: | 6A | 5.42A | 2.71A | |
| Rated Power: | 30W | 65W | 65W | |
| Voltage Tolerance: | ±5.0% | ±5.0% | ±5.0% | |
| Ripple and Noise: | 75mVp-p | 120mVp-p | 200mVp-p | |
| Line Regulation: | ±3% | |||
| Load Regulation: | ±5% | ±5% | ±5% | |
| Setup, Rise, Hold Up time: | 500ms, 30ms/120ms 230VAC 1000ms, 30ms/25ms 115VAC at full load | |||
| ENVIRONMENT AL |
Operating Temperature: | -20 ~ +60 (Refer to "Derating Curve") | ||
| Storage Temp: | -40℃ ~ 85℃ | |||
| Storage Humidity: | 10 ~ 95% RH | |||
| Working Humidity: | 20 ~ 95% RH non-condensing | |||
| PROTECTION | Over Load: | Above 105% rated output power | ||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||
| Over Voltage: | 5V:5.75~ 6.75V 12V:13.8 ~ 16.2V 15V:17.25 ~ 20.25V 24V:27.6 ~ 32.4V | |||
| Protection type: Shutdown o/p voltage, re-power on to recover | ||||
| Over Temperature: | Shutdown o/p voltage, re-power on to recover | |||
| SAFETY & EMC |
Safety Regulations: | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved | ||
| Withstand Voltage: | I/P-O/P:3KV AC I/P-FG:2KV AC O/P-FG:0.5KV AC | |||
| Isolation Resistance: | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC Emission: | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B |
|||
| EMC Immunity: | EN/EN61000-4-2,3,4,5,6,8,11 | |||
| OTHER | MTBF: | 500Khrs min. MIL-HDBK-217F(25℃) | ||
| Size: | 130*98*40mm | |||
| Weight: | 370g / pcs | |||
| Packaging: | 50PCS/CTN | |||
Advantages:
1, Custom designed power supply developed and manufactured by us.
2, Strictly following ISO9001 & ISO14001 quality management systems & ERP system.
3, Export to global without any resistance. All products passed CE, CB, GS, BS, PSE, SAA, UL, CUL, ETL, C-tick, FCC, CEC, KC, CCC safety certification, Meet the level VI energy efficiency standards.
4, Our experienced and committed R&D team follows the pace quickly to meet your various requirements, and can customize according to your demand.
5, Our 24-hour sales service and quality checking department can solve your problem as soon as possible to maximize your benefit.
6, Diffenrent dilivery methods are available, such as sea shipment, airline, expresses such as UPS, DHL, FEDEX, TNT, etc.
FAQ:
1. Are you a trading company or factory?
We are factory in Dongguan / Shenzhen. Our headquarter in Hongkong.
2. Do you provide samples?
Yes, free samples are provided while you pay the freight. Usually delivered by express like Fedex, UPS, DHL, TNT, EMS, etc.
3. What’s your MOQ?
Our MOQ is 1000pcs, but for the first order, there is no MOQ.
4. How long is the lead time?
It takes about 15-25 working days to proceed mass production. For samples, it’s usually in a week.
5. What’s your payment term and shipping term?
Advanced T/T & FOB Shenzhen / Dongguan / Hongkong
6. How long is the warranty?
It’s 3~5 year. During this period, if you encounter any problem, pls feel free to contact us. Our sales team, QC and R&D department will make every effort to meet your demand.
Contact:
Your inquiry and mail will be quickly responded. If you have no ideas on choosing the right power supply, please do not hesitate to contact us: info@ANENpower.com
