EN/IEC 60601 certified 24W Max 12V Medical AC Adapter 9V Detachable Plug Switching Power Supply 24V Transformer
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 15 ~ 24W Max |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 62.5L X 41W X 34H (mm) |
EN/IEC 60601 certified 24W Max 12V Medical AC Adapter 9V Detachable Plug Switching Power Supply 24V Transformer

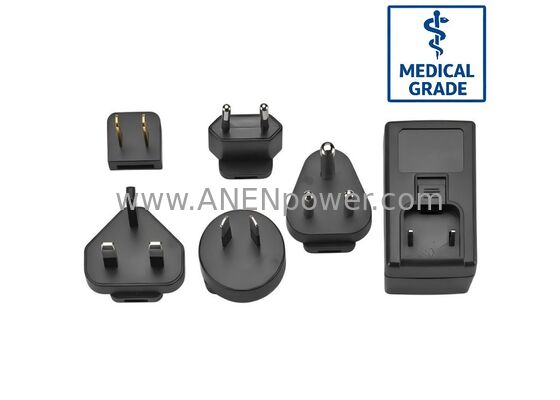

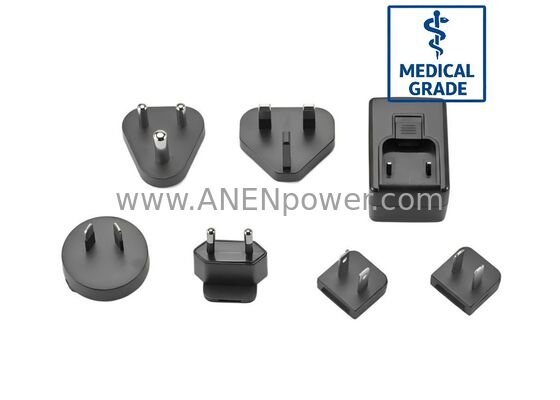

The APM19H series is a family of wall mount Medical AC adapters (wall adapters/wall warts) equipped with Interchangeable plug that are designed to offer 24W max continuous output power with a single output of either 5V, 12V, or 24V (coming with a universal input of 100~240 Vac).
APM19H are burn-in test conducted and offer class II operation, low leakage current, over load protection (OLP), crowbar mode over voltage protection (OVP), and 2 x MOPP (Means of Patient Protection) classification to ensure the safety of the patient, caregiver, and device to which the power supply is applied. The series owns comprehensive protection designs along with all-inclusive safety certifications and conforms to major international safety standards including IEC/EN 60601-1. All modules are fully compliant with the Level VI efficiency standard and RoHS directive.
APM19H switching power supplies are designed for medical applications and are ideal for breath detectors/testers, ECG, EEG, portable medical devices, medical tablets, digital blood pressure monitors, etc.
• Power Range: 15~24W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~24 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 62.5L x 41W x 34H (mm)
• Weight: 150g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM19HA | 15W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM19HB | 20W | 9-13V | 0A | 2.0A | ±5% | ±1% | 180mV |
| APM19HC | 20W | 14-19V | 0A | 1.42A | ±5% | ±1% | 200mV |
| APM19HD | 20W | 20-27V | 0A | 1.0A | ±5% | ±1% | 250mV |
| APM19HE | 20W | 28-35V | 0A | 0.71A | ±5% | ±1% | 280mV |
| APM19HF | 20W | 36-48V | 0A | 0.55A | ±5% | ±1% | 360mV |
| APM19HG | 18W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM19HH | 24W | 9-13V | 0A | 2.0A | ±5% | ±1% | 180mV |
| APM19HJ | 24W | 14-19V | 0A | 1.71A | ±5% | ±1% | 200mV |
| APM19HK | 24W | 20-27V | 0A | 1.2A | ±5% | ±1% | 250mV |
| APM19HL | 24W | 28-35V | 0A | 0.85A | ±5% | ±1% | 280mV |
| APM19HM | 24W | 36-48V | 0A | 0.66A | ±5% | ±1% | 360mV |
| NOTED: | |||||||
| 1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. | |||||||
| 2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. | |||||||
| 3 : Max. Power (W) = Vo x Io | |||||||
