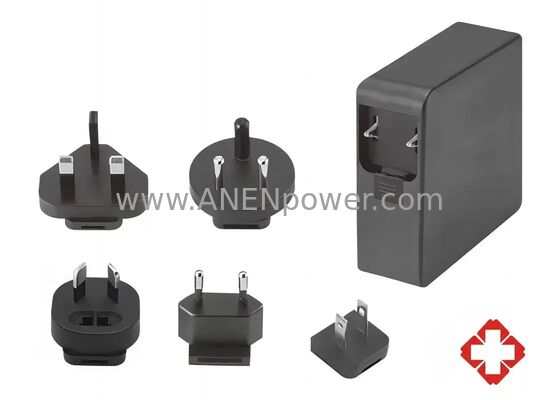

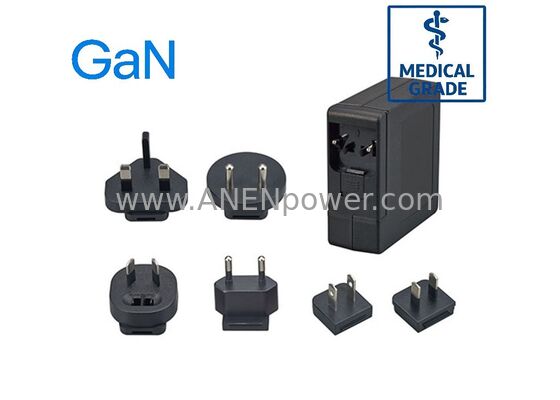

PD 65W GaN USB-C Medical AC Adapter Power Supply Interchangeable Plugs 5V 9V 12V 15V 20V Multi-Voltage Output

65W GaN Medical USB-C PD AC Adapter: 5V-20V Adaptive Ultra-Compact Power Solution

Product Overview

The 65W GaN Medical USB-C PD AC Adapter represents the next generation of clinical power technology. By leveraging Gallium Nitride (GaN) semiconductors, this adapter delivers high-wattage performance in a significantly smaller, cooler, and more efficient form factor than traditional silicon-based chargers. Delivering up to 65W via Power Delivery (PD 3.0), it is the ultimate universal power solution for Medical-Grade Laptops, Clinical Tablets, and Advanced Diagnostic Hubs.

Engineered for the rigorous safety standards of healthcare, it is fully compliant with IEC 60601-1 (3.1 Edition) and features 2 x MOPP (Means of Patient Protection). The Interchangeable AC Plug system allows for seamless global deployment across diverse clinical environments. With its ultra-low leakage current and reinforced isolation, this GaN-powered unit provides the high-speed charging and medical-grade protection required for mission-critical clinical devices.

Key Specifications

Our 65W GaN medical series combines high-speed PD charging with the most stringent patient protection protocols.

• Technology: GaN (Gallium Nitride) for high power density and cool operation.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Output Port: USB Type-C (Power Delivery 3.0 / PPS Support).

• PD Output Profiles: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 3.25A (65W Max).

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in the patient vicinity.

• Plug Types: Interchangeable AC Plugs (US/EU/UK/AU) for global clinical mobility.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 65W GaN medical output is optimized for high-performance clinical and diagnostic electronics:

• Clinical Devices: Medical-grade laptops, high-definition clinical tablets, and handheld ultrasound displays.

• Diagnostic Equipment: Mobile ECG workstations, high-capacity blood analyzers, and portable imaging hubs.

• Patient Monitoring: Centralized nursing station tablets and multi-parameter mobile monitors.

• Rehabilitation: Advanced TENS Therapy Units and clinical Rehabilitation Devices.

• Respiratory Care: High-power portable ventilators and smart sleep therapy (CPAP) systems.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Advanced Thermal Management: GaN technology ensures the casing remains cool to the touch, even under full 65W load.

• Clinical-Grade EMI/EMC: Optimized to prevent interference with sensitive physiological sensors and wireless hospital networks (WLAN).

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Intelligent PD Logic: Automatically negotiates the safest and fastest voltage for the connected medical device to prevent overcharging.
