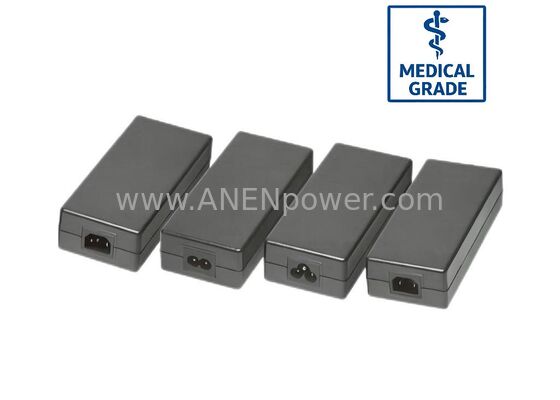

65W Medical Desktop AC Adapter 19V 3.42A 12V 5A Power Supply for Medical Display System

65W Max Medical Desktop AC Adapter: 19V 3.42A / 12V 5.4A Ultra-Safe Power Solution

Product Overview

The 65W Max Medical Desktop AC Adapter is a high-precision power supply specifically engineered for the critical visual and diagnostic requirements of modern healthcare. Delivering a stable 19V 3.42A or a robust 12V 5.4A, this adapter is the premier power choice for Medical-Grade Monitors, High-Resolution Diagnostic Displays, and Surgical Imaging Screens.

Fully compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinicians. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that medical displays maintain absolute color accuracy and pixel-perfect clarity without electronic artifacts. Whether integrated into a diagnostic workstation or a mobile clinical imaging cart, this 65W unit delivers the stability and medical-grade protection required for high-stakes visual data.

Key Specifications

Our medical series incorporates redundant safety layers and advanced electromagnetic compatibility (EMC) to ensure fail-safe performance in sensitive imaging environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 65W Continuous Maximum.

• Common Output Configurations:

  • 19V Series: 19V 3.42A (65W Max - Standard for medical laptops/monitors)

  • 12V Series: 12V 5A / 12V 5.41A (60W-65W Max - Industry standard for imaging hubs)

  • 24V Series: 24V 2.7A (65W Max)

  • 48V Series: 48V 1.35A (65W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent accidental micro-shocks.

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II medical systems).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 65W medical-grade output is optimized for high-performance visual and diagnostic electronics:

• Medical Display Systems: 4K diagnostic monitors, surgical displays, and patient-bedside entertainment units.

• Imaging Peripherals: Ultrasound workstations, digital X-ray processing hubs, and endoscopic video processors.

• Diagnostic Devices: High-end blood analyzers, DNA amplification systems, and portable telemetry stations.

• Clinical Computing: Medical-grade tablets, nursing workstations-on-wheels (WOW), and laboratory PCs.

• Therapy Equipment: Mid-power laser therapy devices and advanced respiratory ventilators.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Imaging-Grade EMI/EMC: Optimized to prevent interference with wireless hospital networks and high-frequency surgical tools.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain consistent operation during electrical transients.
