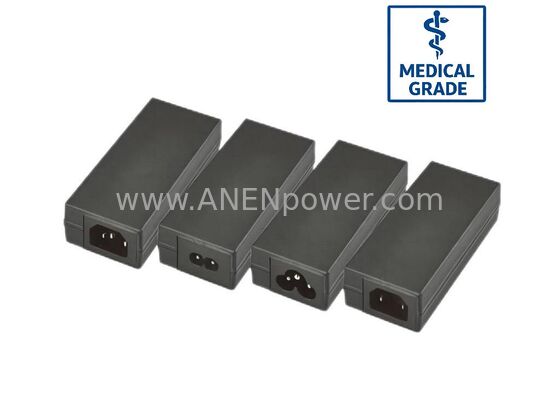

45W Medical Desktop AC Adapter 15V 3A 12V 3.75A Power Supply for Therapy Equipment

45W Max Medical Desktop AC Adapter: 15V 3A / 12V 3.75A Ultra-Safe Power Solution

Product Overview

The 45W Max Medical Desktop AC Adapter is a high-performance power supply unit meticulously engineered for the demanding requirements of physical therapy and medical rehabilitation technology. Delivering a stable 15V 3A or a high-current 12V 3.75A, this adapter is the dedicated power source for Therapy Lasers, Ultrasound Therapy Machines.

Fully compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure absolute safety for patients undergoing long-duration treatments. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that sensitive therapeutic sensors and control interfaces operate with pinpoint accuracy. Whether used in a specialized rehabilitation clinic or for home-based therapy, this 45W unit delivers the reliability and medical-grade protection essential for patient recovery.

Key Specifications

Our medical series incorporates redundant safety layers and advanced power management to ensure fail-safe performance in clinical treatment environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 45W Continuous Maximum.

• Common Output Configurations:

  • 15V Series: 15V 3A (45W Max - Ideal for therapeutic laser modules)

  • 12V Series: 12V 3.75A (45W Max - Industry standard for rehab equipment)

  • 24V Series: 24V 1.87A (45W Max)

  • 19V Series: 19V 2.37A (45W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent accidental micro-shocks during patient contact.

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Available for Class I and Class II medical systems).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 45W medical-grade output is optimized for high-performance treatment and diagnostic electronics:

• Therapy Equipment: Infrared/Laser therapy devices, therapeutic ultrasound units, and shockwave therapy systems.

• Rehabilitation: EMS, TENS units, and motorized physical therapy aids.

• Patient Monitoring: Multi-parameter vital signs monitors and neonatal care equipment.

• Diagnostic Devices: Portable ECG/EKG machines and digital dermatoscopes.

• Respiratory Care: Medical-grade nebulizers and CPAP/BiPAP accessories.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection during skin-contact treatments.

• Clinical-Grade EMI/EMC: Engineered to prevent interference with wireless hospital networks and sensitive bio-feedback sensors.

• High-Impact, Flame-Retardant Casing: UL94 V-0 rated housing designed to withstand the rigors of daily clinical use and sterilization.

• Comprehensive Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain consistent therapy sessions during power fluctuations.
