36W Medical Desktop AC Adapter 12V 3A 24V 1.5A Power Supply for Medical Imaging Device

36W Max Medical Desktop AC Adapter: 12V 3A / 24V 1.5A Ultra-Safe Power Solution

Product Overview

The 36W Max Medical Desktop AC Adapter is a high-precision power conversion unit specifically engineered for the rigorous demands of medical imaging and diagnostic technology. Delivering a stable 12V 3A or 24V 1.5A, this adapter provides the clean, consistent DC power required for Handheld Ultrasound Systems, Digital X-Ray Detectors, and Endoscopic Cameras.

Designed in strict accordance with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinicians. The desktop form factor offers a secure, grounded connection that effectively minimizes electromagnetic interference (EMI), ensuring that high-resolution imaging sensors operate without artifacts or electronic noise. Whether used in a radiology suite or a mobile clinical cart, this 36W unit delivers the reliability and medical-grade protection required for high-stakes medical data.

Key Specifications

Our medical series incorporates redundant safety layers and advanced electromagnetic compatibility (EMC) to ensure fail-safe performance in high-sensitivity environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 36W Continuous Maximum.

• Common Output Configurations:

  • 12V Series: 12V 3A (36W Max - Industry standard for imaging peripherals)

  • 24V Series: 24V 1.5A (36W Max)

  • 15V Series: 15V 2.4A (36W Max)

  • 9V Series: 9V 4A (36W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety.

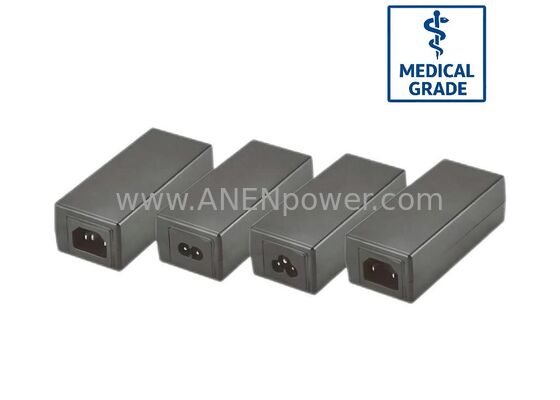

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Available for Class I and Class II medical systems).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring long-term clinical durability.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 36W medical-grade output is optimized for high-resolution imaging and analytical electronics:

• Medical Imaging: Portable ultrasound scanners, dental X-ray sensors, and endoscopic light sources.

• Diagnostic Devices: High-definition medical monitors, digital dermatoscopes, and ophthalmic cameras.

• Patient Monitoring: Multi-parameter vital signs monitors and fetal heart rate stations.

• Laboratory & Analytical: Automated blood analyzers, DNA thermal cyclers, and micro-spectrometers.

• Therapy Systems: Medical-grade laser therapy devices and precision infusion controllers.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Imaging-Grade EMI/EMC: Optimized to prevent electronic noise from interfering with high-sensitivity image sensors.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent sterilization with hospital-grade disinfectants.

• Active Protection: OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during electrical transients.
