24W Medical Desktop AC Adapter 12V 2A 24V 1A Power Supply for Patient Monitor Equipment

24W Max Medical Desktop AC Adapter: 12V 2A / 24V 1A Ultra-Safe Power Solution

Product Overview

The 24W Max Medical Desktop AC Adapter is a high-reliability power conversion solution specifically engineered for critical patient care and monitoring applications. Delivering a precise 12V 2A or 24V 1A, this adapter is the dedicated power source for Bedside Patient Monitors, Vital Signs Monitors, and Neonatal Monitoring Systems.

Strictly compliant with global medical safety standards (IEC 60601-1), it is built with reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinical staff. The desktop form factor provides a stable, grounded connection that effectively minimizes electromagnetic interference (EMI), ensuring that sensitive ECG, SpO2, and NIBP sensors provide accurate, noise-free readings. Whether used in high-acuity hospital wards or for home-based post-operative monitoring, this 24W unit delivers the stability and safety required for life-critical data.

Key Specifications

Our medical series is designed with redundant safety mechanisms and advanced electromagnetic compatibility (EMC) to ensure fail-safe performance in hospital environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 24W Continuous Maximum.

• Common Output Configurations:

  • 12V Series: 12V 2A (24W Max - Industry Standard for Monitors)

  • 24V Series: 24V 1A (24W Max)

  • 5V Series: 5V 4A (20W Max - For high-current logic boards)

  • 15V Series: 15V 1.6A (24W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior patient safety.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent micro-shocks.

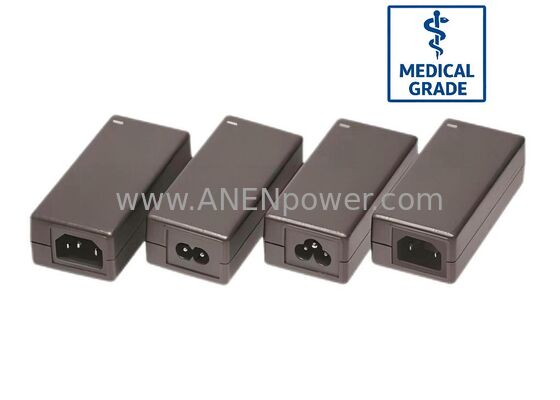

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Available for Class I and Class II medical systems).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 24W medical-grade output is optimized for continuous-duty healthcare monitoring:

• Patient Monitoring: Bedside vital signs monitors, fetal monitors, and portable ECG/EKG machines.

• Respiratory Care: Portable ventilators, medical-grade nebulizers, and oxygen concentrators.

• Diagnostic Imaging: Handheld ultrasound units and portable X-ray detectors.

• Infusion Systems: Automated enteral feeding pumps and smart infusion controllers.

• Laboratory & Rehab: Automated blood analyzers and electronic rehabilitation therapy devices.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Clinical-Grade EMI/EMC: Optimized to prevent interference with wireless medical networks and sensitive physiological sensors.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand medical-grade cleaning agents.

• Smart Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during power fluctuations.
