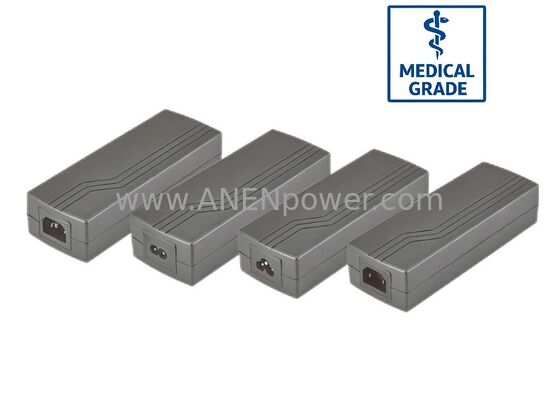

180W Medical Desktop AC Adapter 24V 7.5A 12V 15A Power Supply for Medical Imaging System

180W Max Medical Desktop AC Adapter: 24V 7.5A / 12V 15A Ultra-Safe Power Solution

Product Overview

The 180W Max Medical Desktop AC Adapter is a high-power, clinical-grade conversion unit specifically engineered for the intense data-processing and motorized requirements of advanced medical imaging. Delivering a robust 24V 7.5A or a massive 12V 15A, this adapter is the premier power choice for High-End Ultrasound Consoles, Mobile X-Ray Detectors, and 4K Surgical Video Processors.

Strictly compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinicians in diagnostic environments. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that sensitive imaging sensors and high-resolution displays operate with absolute signal integrity and zero electronic artifacts. Whether integrated into a radiology suite or a mobile diagnostic cart, this 180W unit delivers the sustained wattage and medical-grade protection required for high-stakes medical visualization.

Key Specifications

Our medical series incorporates redundant safety layers and advanced thermal management to ensure fail-safe performance in 24/7 clinical environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 180W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 7.5A (180W Max - Standard for motorized imaging systems)

  • 12V Series: 12V 15A (180W Max - Ultra-high current for parallel imaging logic)

  • 19V/19.5V Series: 19V 9.47A / 19.5V 9.23A (180W Max - For medical-grade workstations)

  • 48V Series: 48V 3.75A (180W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in the patient vicinity.

• AC Inlet: IEC320-C14 (Grounded Class I for maximum EMI shielding).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 180W medical-grade output is optimized for high-performance imaging and diagnostic electronics:

• Medical Imaging Systems: Portable color Doppler ultrasound consoles, digital X-ray processing stations, and C-arm imaging peripherals.

• Surgical Imaging: 4K/8K surgical displays, endoscopic video processors, and robotic surgical navigation hubs.

• Clinical Computing: Medical-grade AI servers, nursing workstations-on-wheels (WOW), and laboratory diagnostic PCs.

• Laboratory Automation: High-throughput blood analyzers and automated DNA sequencing platforms.

• Surgical Equipment: High-power LED surgical lighting systems and motorized operating tables.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection during diagnostic procedures.

• Imaging-Grade EMI/EMC: Advanced filtering circuitry designed to prevent interference with high-frequency imaging transducers and sensitive physiological monitors.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, engineered to withstand frequent disinfection with clinical-grade agents.

• High-Current DC Connection: Equipped with 4-Pin Power DIN or High-Current Aviation Connectors to safely manage 15A currents without terminal overheating or voltage drops.

• Advanced Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during electrical transients.
