12W UKCA, UL & CE Certified Ultra-Thin LED Power Supply – 12V/24V Output for Flexible LED Lighting

China 12W UKCA, UL & CE Certified Ultra-Thin LED Power Supply – 12V/24V Output for Flexible LED Lighting supplier

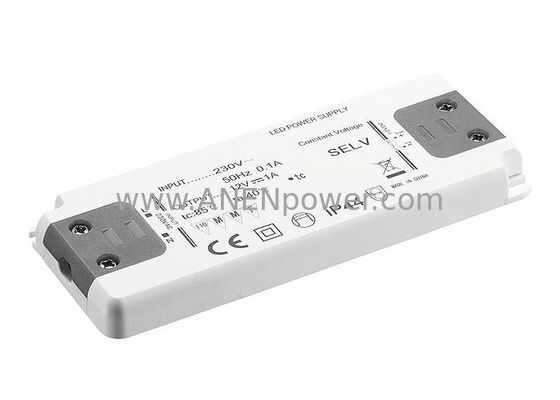

Large Image :  12W UKCA, UL & CE Certified Ultra-Thin LED Power Supply – 12V/24V Output for Flexible LED Lighting

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number: APL012S

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Contact Now
Detailed Product Description
Power: 12W Max. Input: 90-265V AC
Output Voltage: 12V/ 24V/ 36V /48V Output Current: 1A/ 500mA/ 330mA/ 250mA
Dimension(LxWxH): 128x46x12.5mm Voltage Tolerance: ±5%
Riple(P-P): ＜1% Efficiency: ≥85%
Applicant: Cabinet Lights, LED Strips, LED Indoor Lighting, LED Decorative Lighting, LED Building Lighting

12W UKCA, UL & CE Certified Ultra-Thin LED Power Supply – 12V/24V Output for Flexible LED Lighting



This 12W ultra-thin LED driver combines global safety compliance with compact design—certified to UKCA, UL, and CE standards for reliable use across the UK, North America, and Europe. Offering selectable 12V or 24V constant-voltage output, it’s ideal for a variety of low-voltage LED lighting applications, including strips, under-cabinet fixtures, and display accents. Its slim profile enables discreet installation in tight spaces, while stable, efficient performance ensures flicker-free, long-lasting illumination. Perfect for residential and light commercial projects that demand safety, simplicity, and space-saving design.



- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating



MODEL DETAIL SPEC. APL012S-1201000 APL012S-2400500 APL012S-3600330 APL012S-4800250
INPUT Input Voltage: 100-240VAC/ 200-240VAC
Input Frequency: 50-60Hz
Inrush Current: 65 Amps max. at 230VAC/50Hz,full load
AC Current: 0.68A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 78% 78% 78% 78%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 1A 500mA 330mA 250mA
Rated Power: 12W 12W 12W 12W
Voltage Tolerance: ±5.0% ±5.0% ±5.0% ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3750KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 128*46*12.5mm
Weight: 50g / pcs
Packaging: 100PCS/CTN,36*28.5*25cm

12W UKCA, UL & CE Certified Ultra-Thin LED Power Supply – 12V/24V Output for Flexible LED Lighting
