15W UL & PSE Certified Ultra-Thin LED Power Supply – 12V/1.25A, with 24V & 36V Output Options

China 15W UL & PSE Certified Ultra-Thin LED Power Supply – 12V/1.25A, with 24V & 36V Output Options supplier

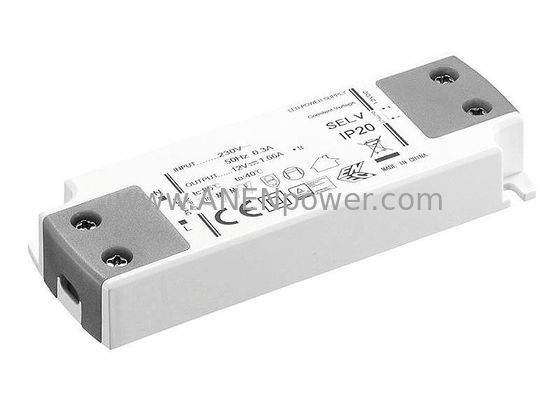

Large Image :  15W UL & PSE Certified Ultra-Thin LED Power Supply – 12V/1.25A, with 24V & 36V Output Options

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number: APL015S

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Contact Now
Detailed Product Description
Power: 15W Max. Input: 90-265V AC
Output Voltage: 12V/ 24V/ 36V /48V Output Current: 1250mA/ 625mA/ 416mA/ 312mA
Dimension(LxWxH): 128x46x17mm Voltage Tolerance: ±5%
Riple(P-P): ＜1% Efficiency: ≥85%
Applicant: Cabinet Lights, LED Strips, LED Indoor Lighting, LED Decorative Lighting, LED Building Lighting

15W UL & PSE Certified Ultra-Thin LED Power Supply – 12V/1.25A, with 24V & 36V Output Options



This 15W ultra-slim LED driver delivers reliable, constant-voltage power with multiple output options: 12V at 1.25A, plus selectable 24V or 36V—ideal for versatile LED strip and module applications. Certified to UL (North America) and PSE (Japan) safety standards, it ensures compliant, safe operation in residential and light commercial settings. Its remarkably thin form factor fits easily into tight spaces like cabinets, signage, or display fixtures, while stable, low-noise performance guarantees flicker-free lighting. A compact, certified solution for global LED projects demanding efficiency and reliability.



- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating



MODEL DETAIL SPEC.

APL015S

-1201250

 APL015S-2400625 APL015S-3600416 APL015S-4800312
INPUT Input Voltage: 100-240VAC/ 200-240VAC
Input Frequency: 50-60Hz
Inrush Current: 65 Amps max. at 230VAC/50Hz,full load
AC Current: 0.11A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 88% 88% 88% 88%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 1.25A 625mA 416mA 312mA
Rated Power: 15W 15W 15W 15W
Voltage Tolerance: ±5.0% ±5.0% ±5.0% ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3750KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 128x46x17mm
Weight: 70g / pcs
Packaging: 100PCS/CTN,37.5*28.5*24cm
