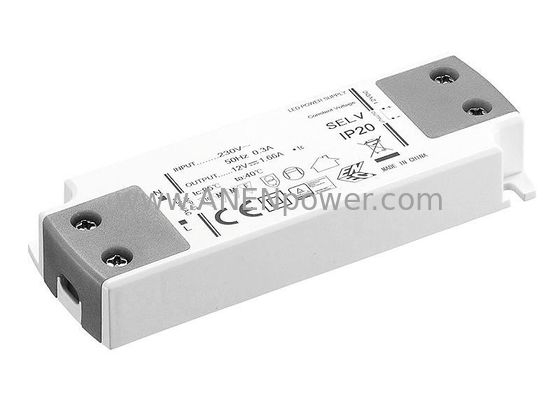

20W UKCA Certified Super Thin LED Power Supply – 12V/1.66A or 24V Output for LED Lighting
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power: | 20W Max. | Input: | 90-265V AC |
|---|---|---|---|
| Output Voltage: | 12V/ 24V/ 36V /48V | Output Current: | 1.66A/ 830mA/ 550mA/ 416mA |
| Dimension(LxWxH): | 128x46x17mm | Voltage Tolerance: | ±5% |
| Riple(P-P): | ＜1% | Efficiency: | ≥89% |
| Applicant: | Cabinet Lights, LED Strips, LED Indoor Lighting, LED Decorative Lighting, LED Building Lighting |
20W UKCA Certified Super Thin LED Power Supply – 12V/1.66A or 24V Output for LED Lighting
Compact, compliant, and capable—the 20W super thin LED driver offers dual-voltage flexibility with 12V at 1.66A or 24V constant-voltage output, perfect for LED strips, under-cabinet lights, and accent lighting. Fully UKCA certified, it meets UK safety and regulatory standards for reliable indoor use. Its ultra-slim design fits seamlessly into confined spaces, while efficient, stable performance ensures flicker-free illumination. Ideal for residential and light commercial installations where space, safety, and simplicity matter.
- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating
| MODEL DETAIL SPEC. | APL020S-1201660 | APL020S-2400830 | APL020S-3600550 | APL020S-4800416 | |
| INPUT | Input Voltage: | 100-240VAC/ 200-240VAC | |||
| Input Frequency: | 50-60Hz | ||||
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load | ||||
| AC Current: | 0.11A/230VAC | ||||
| Leakage Current: | ＜0.25mA/240VAC | ||||
| Efficiency: | 88% | 88% | 88% | 88% | |
| OUTPUT | DC Voltage: | 12V | 24V | 36V | 48V |
| Rated Current: | 1.66A | 830mA | 550mA | 416mA | |
| Rated Power: | 20W | 20W | 20W | 20W | |
| Voltage Tolerance: | ±5.0% | ±5.0% | ±5.0% | ±5.0% | |
| Ripple and Noise: | 120mVp-p | 240mVp-p | 360mVp-p | 480mVp-p | |
| Line Regulation: | ±3% | ||||
| Load Regulation: | ±5% | ||||
| Setup, Rise, Hold Up time: | 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load | ||||
| ENVIRONMENTAL | Operating Temperature: | -20 ~ +50 (Refer to "Derating Curve") | |||
| Storage Temp: | -40℃ ~ 85℃ | ||||
| Storage Humidity: | 20 ~ 95% RH | ||||
| Working Humidity: | 20 ~ 95% RH non-condensing | ||||
| PROTECTION | Over Load: | Above 105%-130% rated output power | |||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Voltage: | 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temperature: | Shut down o/p voltage, re-power on to recover | ||||
| SAFETY & EMC | Safety Regulations: | EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015 | |||
| Withstand Voltage: | I/P-O/P:3750KVAC | ||||
| Harmonic | EN61000-3-2 Class C EN61000-3-3 | ||||
| EMI: | Compliance to EN55015 | ||||
| EMS: | compliance to 61547:2009 | ||||
| OTHER | MTBF: | 200,000 Hours Minimum at Full Load at 25℃ Ambient | |||
| Size: | 128*46*17mm | ||||
| Weight: | 70g / pcs | ||||
| Packaging: | 100PCS/CTN,37.5*28.5*24cm | ||||
