50W Super Thin Dual-Voltage LED Driver – 12V/4.16A or 24V/2.08A for High-Performance Lighting

China 50W Super Thin Dual-Voltage LED Driver – 12V/4.16A or 24V/2.08A for High-Performance Lighting supplier

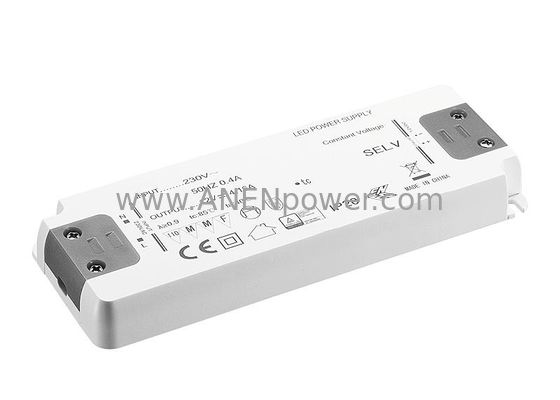

Large Image :  50W Super Thin Dual-Voltage LED Driver – 12V/4.16A or 24V/2.08A for High-Performance Lighting

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number: APL050S

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Contact Now
Detailed Product Description
Power: 50W Max. Input: 90-265V AC
Output Voltage: 12V/ 24V/ 36V /48V Output Current: 4.16A/ 2080mA/ 1380mA/ 1050mA
Dimension(LxWxH): 184x63x22mm Voltage Tolerance: ±5%
Riple(P-P): ＜1% Efficiency: ≥90%
Applicant: Cabinet Lights, LED Strips, LED Indoor Lighting, LED Decorative Lighting, LED Building Lighting

50W Super Thin Dual-Voltage LED Driver – 12V/4.16A or 24V/2.08A for High-Performance Lighting



Power demanding LED installations with this ultra-slim 50W switching power supply, designed for both 12V (4.16A) and 24V (2.08A) systems. Its dual-voltage capability offers flexibility for a wide range of applications—from kitchen under-cabinet lighting and retail displays to architectural accents and commercial signage. Despite its high output, the driver maintains a remarkably thin profile for discreet, space-saving installation. Built for reliability and efficiency, it’s the ideal solution for professional-grade indoor LED projects requiring robust, stable power in a compact form.



- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating



MODEL DETAIL SPEC.

APL50S

-1204160

APL50S

-2402080

APL50S

-3601380

APL50S

-4801050
INPUT Input Voltage: 100-240VAC/ 200-240VAC
Input Frequency: 50-60Hz
Inrush Current: 65 Amps max. at 230VAC/50Hz,full load
AC Current: 0.17A/230VAC
Leakage Current: ＜0.25mA/240VAC
Efficiency: 88% 88% 88% 88%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 4.16A 2080mA 1380mA 1050mA
Rated Power: 50W 50W 50W 50W
Voltage Tolerance: ±5.0% ±5.0% ±5.0% ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50℃ (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3750KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 184x63x22mm
Weight: 200g / pcs
Packaging: 100PCS/CTN,37.5*28.5*24cm

50W Super Thin Dual-Voltage LED Driver – 12V/4.16A or 24V/2.08A for High-Performance Lighting
