100W Super Thin Constant Voltage LED Driver – 12V/8.3A, 24V/4.16A, or 36V/2.7A for High-Demand LED Installations

China 100W Super Thin Constant Voltage LED Driver – 12V/8.3A, 24V/4.16A, or 36V/2.7A for High-Demand LED Installations supplier

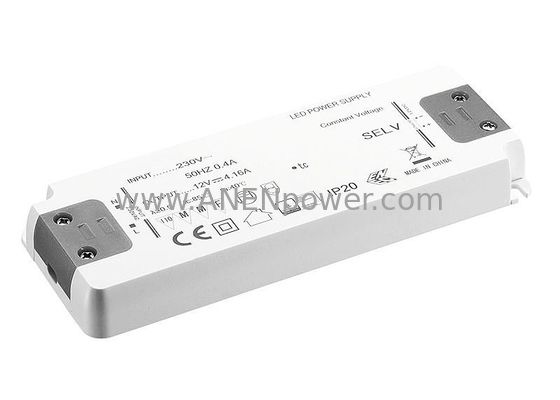

Large Image :  100W Super Thin Constant Voltage LED Driver – 12V/8.3A, 24V/4.16A, or 36V/2.7A for High-Demand LED Installations

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/CUL, FCC, CE, GS, TUV, CB, RCM, SAA, PSE, KC, UKCA
Model Number: APL100S

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Contact Now
Detailed Product Description
Power: 100W Max. Input: 90-265V AC
Output Voltage: 12V/ 24V/ 36V /48V Output Current: 8300mA/ 4160mA/ 2700mA/ 2080mA
Dimension(LxWxH): 160x58x18mm Voltage Tolerance: ±5%
Riple(P-P): ＜1% Efficiency: ≥90%
Applicant: Cabinet Lights, LED Strips, LED Indoor Lighting, LED Decorative Lighting, LED Building Lighting

100W Super Thin Constant Voltage LED Driver – 12V/8.3A, 24V/4.16A, or 36V/2.7A for High-Demand LED Installations



Meet the power needs of large-scale or high-brightness LED projects with this 100W ultra-slim constant voltage driver. Offering triple output options—12V at 8.3A, 24V at 4.16A, or 36V at 2.7A—it delivers stable, efficient power for extensive LED strip runs, commercial signage, architectural lighting, and more. Despite its robust 100W capacity, the driver features a remarkably slim profile for discreet mounting in tight spaces. Built for reliability and uniform illumination, it’s the ideal choice for professional indoor LED applications where performance, flexibility, and space efficiency matter most.



- Universal Input: 90-265V AC 50/60Hz
- RoHS Compliance
- EMI Standard EN55015
- Safety Standard: EN61347-1, EN61347-2-13, UL8750
- Inrush current<65A AC230V/50Hz - High efficiency & low power consumption
- Short Circuit, Over Current and Over Voltage Protection
- Over temperature protection
- 100% full load burn-in test
- Auto restart after remove of fault conditions
- IP20 protection rating



MODEL DETAIL SPEC.

APL100S

-1208300

 APL100S-2404160 APL100S-3602700 APL100S-4802080
INPUT Input Voltage: 100-240VAC/ 200-240VAC
Input Frequency: 50-60Hz
Inrush Current: 65 Amps max. at 230VAC/50Hz,full load
AC Current: 0.56A/230VAC
Leakage Current: ＜0.35mA/240VAC
Efficiency: 89% 89% 89% 89%
OUTPUT DC Voltage: 12V 24V 36V 48V
Rated Current: 8300mA 4160mA 2700mA 2080mA
Rated Power: 100W 100W 100W 100W
Voltage Tolerance: ±5.0% ±5.0% ±5.0% ±5.0%
Ripple and Noise: 120mVp-p 240mVp-p 360mVp-p 480mVp-p
Line Regulation: ±3%
Load Regulation: ±5%
Setup, Rise, Hold Up time: 1s, 10ms/60ms 230VAC 1000ms, 1ms/25ms 115VAC at full load
ENVIRONMENTAL Operating Temperature: -20 ~ +50 (Refer to "Derating Curve")
Storage Temp: -40℃ ~ 85℃
Storage Humidity: 20 ~ 95% RH
Working Humidity: 20 ~ 95% RH non-condensing
PROTECTION Over Load: Above 105%-130% rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Voltage: 12V:13.8 ~ 16.2V 24V:27.6 ~ 32.4V 36V:41.4~48.6V 48V:55.2~64.8V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temperature: Shut down o/p voltage, re-power on to recover
SAFETY & EMC Safety Regulations: EN61347-2-13:2014+A1:2017,EN61347-1:2015;EN62493:2015
Withstand Voltage: I/P-O/P:3750KVAC
Harmonic EN61000-3-2 Class C EN61000-3-3
EMI: Compliance to EN55015
EMS: compliance to 61547:2009
OTHER MTBF: 200,000 Hours Minimum at Full Load at 25℃ Ambient
Size: 160*58*18mm
Weight: 320g / pcs
Packaging: 100PCS/CTN,37.5*28.5*24cm

100W Super Thin Constant Voltage LED Driver – 12V/8.3A, 24V/4.16A, or 36V/2.7A for High-Demand LED Installations
