96W Medical Desktop AC Adapter 24V 4A 12V 8A Power Supply for Ultrasound Equipment

96W Max Medical Desktop AC Adapter: 24V 4A / 12V 8A Ultra-Safe Power Solution

Product Overview

The 96W Max Medical Desktop AC Adapter is a high-precision power conversion unit specifically optimized for the sensitive electronic architecture of modern diagnostic imaging. Delivering a stable 24V 4A or a high-current 12V 8A, this adapter is the premier choice for Portable Ultrasound Machines, Doppler Imaging Systems, and Handheld Sonography Scanners.

Strictly compliant with global medical safety standards (IEC 60601-1), it features reinforced isolation and an ultra-low leakage current design to ensure absolute safety for both patients and sonographers. The desktop form factor provides a robust, grounded connection that effectively eliminates electromagnetic interference (EMI), ensuring that ultrasound transducers and high-resolution displays provide artifact-free, crystal-clear imaging. Whether used in a high-acuity radiology department or a mobile emergency clinic, this 96W unit delivers the reliability and medical-grade protection essential for accurate diagnosis.

Key Specifications

Our medical series incorporates redundant safety layers and advanced filtration technology to ensure fail-safe performance in interference-sensitive environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 96W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 4A (96W Max - Industry standard for portable ultrasound)

  • 12V Series: 12V 7.5A / 12V 8A (90W-96W Max - High-current for imaging processors)

  • 15V Series: 15V 6.4A (96W Max)

  • 19V Series: 19V 5A (95W Max - For medical-grade laptops/tablets)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety during skin-contact procedures.

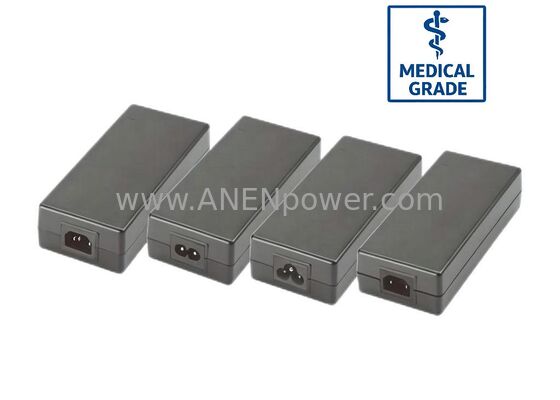

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Available for Class I and Class II medical systems).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 96W medical-grade output is optimized for high-performance imaging and diagnostic electronics:

• Ultrasound Equipment: Portable color Doppler systems, handheld ultrasound probes, and veterinary sonography units.

• Diagnostic Imaging: Digital X-ray sensor hubs, endoscopic video processors, and high-definition medical displays.

• Patient Monitoring: Centralized vital signs monitors and fetal monitoring workstations.

• Laboratory & Analytical: Automated blood analyzers and precision DNA amplification systems.

• Clinical Computing: Medical-grade workstations-on-wheels (WOW) and integrated nursing tablets.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Imaging-Grade EMI/EMC: Advanced noise suppression circuitry to prevent electronic interference from affecting sensitive ultrasound signal processing.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during electrical transients.
