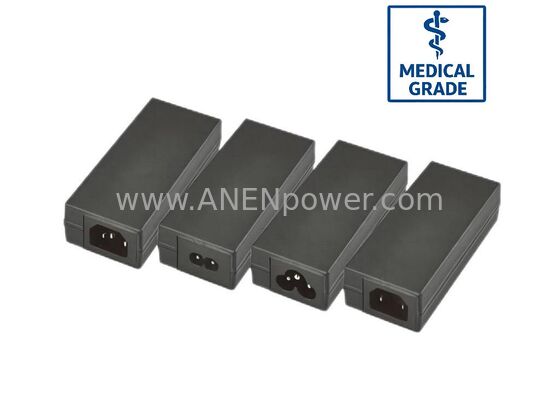

50W Medical Desktop AC Adapter 12V 4A 24V 2A Power Supply for Clinical Device System

50W Max Medical Desktop AC Adapter: 12V 4.16A / 24V 2.1A Ultra-Safe Power Solution

Product Overview

The 50W Max Medical Desktop AC Adapter is a specialized power conversion solution engineered for the high-reliability requirements of integrated clinical systems. Delivering a robust 12V 4.16A or a stable 24V 2.1A, this adapter serves as the primary power source for Clinical Diagnostic Workstations, Patient Monitors, and Laboratory Analytical Systems.

Designed in strict compliance with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and medical staff. The desktop form factor provides a secure, grounded connection that effectively minimizes electromagnetic interference (EMI), ensuring that high-precision clinical sensors and data acquisition modules operate with absolute accuracy. Whether used in an intensive care unit (ICU) or a busy outpatient clinic, this 50W unit delivers the sustained performance and medical-grade protection required for modern healthcare environments.

Key Specifications

Our medical series incorporates redundant safety layers and advanced electromagnetic compatibility (EMC) to ensure fail-safe performance in high-stakes clinical settings.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 50W Continuous Maximum.

• Common Output Configurations:

  • 12V Series: 12V 4A / 12V 4.16A (50W Max - Clinical standard for monitors)

  • 24V Series: 24V 2A / 24V 2.1A (50W Max - Ideal for automated lab tools)

  • 15V Series: 15V 3.33A (50W Max)

  • 48V Series: 48V 1.04A (50W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent micro-shocks in patient-vicinity areas.

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Available for Class I and Class II medical systems).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 50W medical-grade output is optimized for high-performance clinical and diagnostic electronics:

• Clinical Device Systems: Mobile medical carts, nursing workstations, and clinical diagnostic tablets.

• Patient Monitoring: Centralized vital signs monitors, fetal monitoring stations, and telemetry hubs.

• Laboratory & Analytical: Automated blood analyzers, DNA amplification systems, and precision centrifuges.

• Therapy Equipment: Infrared therapy arrays, high-power nebulizers, and medical-grade laser systems.

• Imaging Peripherals: Medical-grade monitors, high-resolution scanners, and dental imaging workstations.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Clinical-Grade EMI/EMC: Optimized to prevent interference with sensitive physiological signals and wireless hospital infrastructure.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated housing designed to withstand rigorous clinical cleaning and sterilization protocols.

• Advanced Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain consistent operation during power transients.
