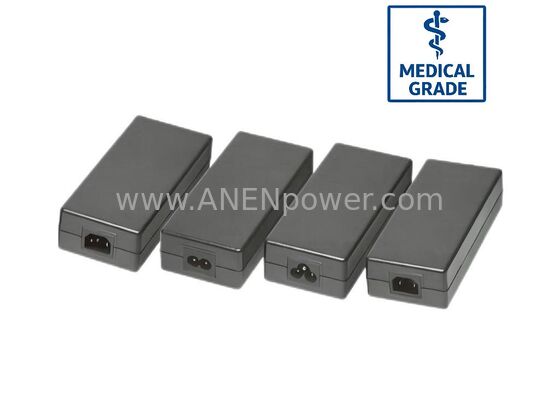

72W Medical Desktop AC Adapter 24V 3A 12V 6A Power Supply for Laboratory Equipment

72W Max Medical Desktop AC Adapter: 24V 3A / 12V 6A Ultra-Safe Power Solution

Product Overview

The 72W Max Medical Desktop AC Adapter is a high-performance power conversion solution specifically engineered for the rigorous demands of clinical laboratories and research environments. Delivering a stable 24V 3A or a high-current 12V 6A, this adapter is the premier power choice for Automated Blood Analyzers, Centrifuges, and Laboratory Diagnostic Workstations.

Fully compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and laboratory technicians. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that sensitive analytical sensors and microfluidic controllers operate with absolute precision. Whether integrated into a high-throughput pathology lab or a mobile diagnostic unit, this 72W unit delivers the reliability and medical-grade protection required for critical scientific data.

Key Specifications

Our medical series incorporates redundant safety layers and advanced electromagnetic compatibility (EMC) to ensure fail-safe performance in interference-sensitive environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 72W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 3A (72W Max - Industry standard for lab automation)

  • 12V Series: 12V 6A (72W Max - High-current for analytical logic)

  • 15V Series: 15V 4.8A (72W Max)

  • 48V Series: 48V 1.5A (72W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient and operator safety.

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II medical systems).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year laboratory uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 72W medical-grade output is optimized for high-precision laboratory and diagnostic electronics:

• Laboratory Equipment: Automated centrifuges, liquid handling systems, and micro-plate readers.

• Diagnostic Devices: DNA amplification systems (PCR), blood chemistry analyzers, and spectrometers.

• Imaging Peripherals: High-resolution medical monitors and portable ultrasound consoles.

• Clinical Computing: Medical-grade workstations-on-wheels (WOW) and laboratory information system (LIS) terminals.

• Therapy Systems: High-power laser therapy arrays and advanced respiratory ventilators.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute protection during clinical use.

• Lab-Grade EMI/EMC: Optimized to prevent electronic noise from interfering with high-sensitivity analytical sensors.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with lab-grade chemical agents.

• Comprehensive Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during electrical transients.
