84W Medical Desktop AC Adapter 12V 7A 24V 3.5A Power Supply for Medical Pump Device

84W Max Medical Desktop AC Adapter: 12V 7A / 24V 3.5A Ultra-Safe Power Solution

Product Overview

The 84W Max Medical Desktop AC Adapter is a high-reliability power conversion solution specifically engineered for the critical fluid management requirements of modern healthcare. Delivering a high-current 12V 7A or a stable 24V 3.5A, this adapter is the dedicated power source for Infusion Pumps, Syringe Pumps, Enteral Feeding Systems, and Medical Suction Units.

Designed in strict compliance with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinical operators. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that the sensitive micro-controllers and precision motors within medical pumps operate with absolute accuracy. Whether used in intensive care units (ICU) or for home-based patient care, this 84W unit delivers the stability and medical-grade protection required for life-sustaining equipment.

Key Specifications

Our medical series incorporates redundant safety layers and advanced electromagnetic compatibility (EMC) to ensure fail-safe performance in life-critical environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 84W Continuous Maximum.

• Common Output Configurations:

  • 12V Series: 12V 7A (84W Max - Industry standard for portable infusion pumps)

  • 24V Series: 24V 3.5A (84W Max - Ideal for motorized medical actuators)

  • 15V Series: 15V 5.6A (84W Max)

  • 19V Series: 19V 4.42A (84W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent micro-shocks in patient-care areas.

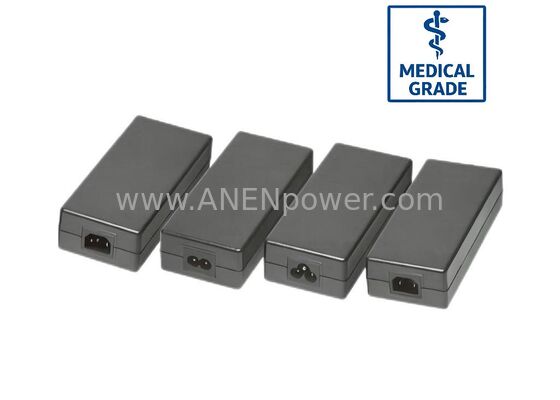

• AC Inlet Options: IEC320-C14 / C6 / C8 / C18 (Flexible for Class I and Class II medical systems).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 84W medical-grade output is optimized for high-performance fluid delivery and therapy electronics:

• Medical Pump Devices: Smart infusion pumps, syringe drivers, and ambulatory insulin pumps.

• Respiratory Care: Portable ventilators, CPAP/BiPAP machines, and high-flow oxygen systems.

• Diagnostic Imaging: Handheld ultrasound units and digital diagnostic workstations.

• Laboratory & Analytical: Automated blood analyzers and precision liquid handling robots.

• Therapy Equipment: Medical-grade laser systems and high-power compression therapy devices.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection during invasive treatment.

• Motor-Grade EMI/EMC: Optimized to handle the inductive back-EMF from medical pump motors without interfering with high-frequency hospital equipment.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand rigorous clinical cleaning protocols.

• Advanced Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain pump operation during power fluctuations.
