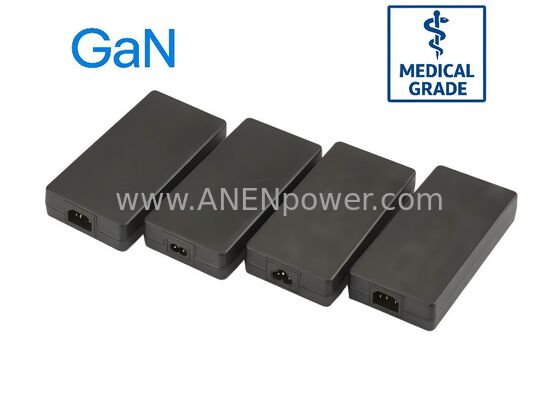

250W GaN Medical Desktop AC/DC Adapter 48V 5.2A 24V 10.4A Power Supply for Medical System Device

250W GaN Medical Desktop AC/DC Adapter: 48V 5.2A / 24V 10.4A High-Performance Solution

Product Overview

The 250W GaN Medical Desktop AC/DC Adapter sets a new benchmark for medical power density, utilizing cutting-edge Gallium Nitride (GaN) technology to deliver massive power in an ultra-compact and thermally efficient housing. Delivering up to 10.4A at 24V or 5.2A at 48V, this adapter is the professional choice for Surgical Robotics, High-Power Medical Laser Systems, and Centralized Diagnostic Stations.

By replacing traditional silicon with GaN semiconductors, this unit achieves an industry-leading efficiency of up to 95%, significantly reducing heat dissipation and allowing for a silent, fanless design—critical for sterile operating theaters and quiet clinical environments. Fully compliant with global medical safety standards (IEC 60601-1, 2 x MOPP), it provides the rock-solid stability and patient protection required for the most advanced medical system devices.

Key Specifications

Our GaN series is engineered for mission-critical reliability, combining high-wattage output with the most stringent medical safety suite.

• Technology: Gallium Nitride (GaN) for maximum efficiency and reduced physical footprint.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 250W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 10A / 24V 10.4A (250W Max - High-torque medical motors)

  • 48V Series: 48V 5A / 48V 5.2A (250W Max - Ideal for PoE++ and high-voltage modules)

  • 12V Series: 12V 20A (Specialized ultra-high current for logic clusters)

  • 19V/19.5V Series: 19.5V 12.8A (250W Max - For high-end medical workstations)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) for maximum patient safety.

• Efficiency: Exceeds DoE Level VI and CoC Tier 2 energy standards.

• AC Inlet: IEC320-C14 / C6 (Grounded Class I for enhanced EMI suppression).

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 250W GaN medical-grade output is optimized for power-hungry, high-precision healthcare technologies:

• Surgical Systems: Robotic surgical assistants, automated operating tables, and high-power cautery tools.

• Medical Lasers: High-intensity aesthetic lasers, surgical laser systems, and therapeutic arrays.

• Advanced Imaging: Mobile CT/MRI control units, high-performance ultrasound consoles, and 8K diagnostic displays.

• Clinical Infrastructure: Centralized nursing stations, medical-grade AI servers, and laboratory automation hubs.

• Life Support: Hospital-grade ventilators and high-capacity extracorporeal membrane oxygenation (ECMO) peripherals.

Professional Safety Suite

• GaN Thermal Excellence: Lower operating temperatures ensure the longevity of high-grade 105°C internal components.

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety in patient-proximity areas.

• Clinical-Grade EMI/EMC: Advanced filtering to prevent interference with sensitive physiological monitoring and wireless medical networks.

• High-Current DC Connection: Equipped with 4-Pin Power DIN or Aviation Connectors to safely manage 10.4A+ currents without terminal overheating.

• Complete Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain system uptime during power surges.
