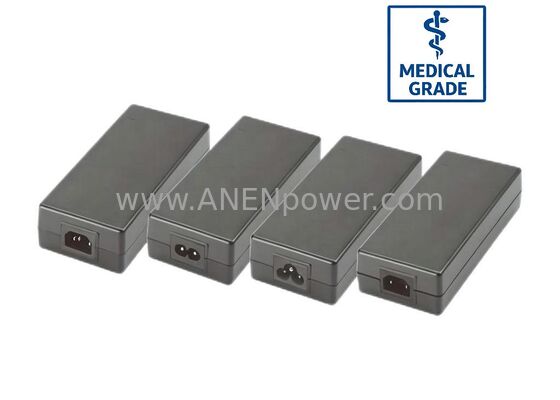

120W Max Medical Desktop AC Adapter: 24V 5A / 12V 10A Ultra-Safe Power Solution

Product Overview

The 120W Max Medical Desktop AC Adapter is a high-capacity power conversion solution specifically engineered for the rigorous demands of modern surgical environments. Delivering a robust 24V 5A or a massive 12V 10A, this adapter is the premier power choice for Surgical Light Systems, Electrosurgical Units (ESU), and Robotic Surgical Assistants.

Fully compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and surgical teams. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that sensitive surgical sensors and high-definition endoscopic displays operate with absolute precision and zero signal noise. Whether used in a sterile operating theater or a high-acuity trauma center, this 120W unit delivers the sustained wattage and medical-grade protection required for life-critical procedures.

Key Specifications

Our medical series incorporates redundant safety layers and advanced electromagnetic compatibility (EMC) to ensure fail-safe performance in interference-sensitive environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 120W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 5A (120W Max - Standard for surgical actuators)

  • 12V Series: 12V 10A (120W Max - High-current for surgical logic boards)

  • 15V Series: 15V 8A (120W Max)

  • 19V/19.5V Series: 19V 6.32A / 19.5V 6.15A (120W Max - For medical PCs)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent accidental micro-shocks in the operating room.

• AC Inlet Options: IEC320-C14 / C6 (Grounded Class I for maximum EMI shielding).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 120W medical-grade output is optimized for power-intensive surgical and diagnostic electronics:

• Surgical Equipment: LED surgical lighting, motorized operating tables, and electrosurgical generators.

• Imaging Systems: High-performance endoscopic video processors and 4K surgical monitors.

• Surgical Robotics: Robotic arm controllers and haptic feedback surgical interfaces.

• Patient Life Support: Advanced ventilators, anesthesia workstations, and high-capacity infusion pumps.

• Laboratory & Analytical: Automated high-speed centrifuges and large-scale blood chemistry analyzers.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection during invasive surgery.

• Surgical-Grade EMI/EMC: Optimized to prevent interference with high-frequency electrosurgical tools and sensitive physiological monitors.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent sterilization with hospital-grade disinfectants.

• Advanced Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during electrical transients.
