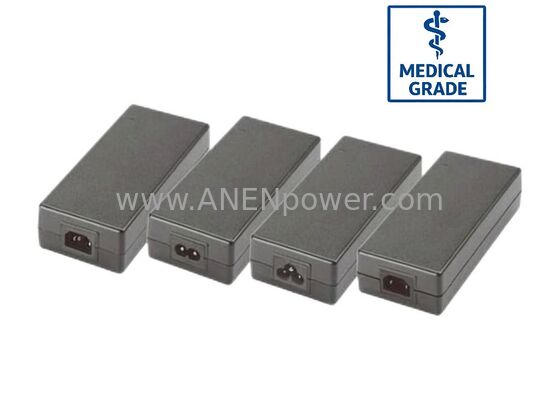

150W Medical Desktop AC Adapter 24V 6.25A 12V 12.5A Power Supply for Medical Automation Equipment

150W Max Medical Desktop AC Adapter: 24V 6.25A / 12V 12.5A Ultra-Safe Power Solution

Product Overview

The 150W Max Medical Desktop AC Adapter is a high-power, clinical-grade conversion unit engineered for the demanding duty cycles of integrated healthcare automation. Delivering a robust 24V 6.25A or a massive 12V 12.5A, this adapter is the primary power source for Automated Pharmacy Dispensers, Robotic Laboratory Analyzers, and High-Power Surgical Control Systems.

Strictly compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinicians. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that the precision motors, high-speed microprocessors, and sensitive sensors within medical automation systems operate with zero-fail reliability. Whether powering a centralized diagnostic hub or a mobile surgical assistant, this 150W unit delivers the sustained wattage and medical-grade protection required for modern, high-throughput healthcare.

Key Specifications

Our medical series incorporates redundant safety layers and advanced thermal management to ensure fail-safe performance in 24/7 clinical environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 150W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 6.25A (150W Max - Standard for medical automation/actuators)

  • 12V Series: 12V 12A / 12V 12.5A (150W Max - High-current for multi-rail logic)

  • 15V Series: 15V 10A (150W Max)

  • 19V/19.5V Series: 19.5V 7.7A (150W Max - For high-end medical workstations)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care zones.

• AC Inlet Options: IEC320-C14 / C6 (Grounded Class I for maximum EMI shielding).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards (High-efficiency GaN options available).

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 150W medical-grade output is optimized for high-performance automation and diagnostic electronics:

• Medical Automation: Automated medication dispensing systems, robotic surgical arms, and smart hospital cart systems.

• Laboratory Systems: High-throughput blood chemistry analyzers, DNA sequencers, and automated liquid handling robots.

• Surgical Equipment: High-power surgical lighting, motorized operating tables, and electrosurgical generators.

• Imaging Systems: High-resolution 4K/8K surgical displays and portable ultrasound consoles with integrated workstations.

• Life Support: Hospital-grade ventilators and high-capacity anesthesia workstations.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Industrial-Grade EMI/EMC: Optimized to prevent interference with wireless hospital infrastructure (WLAN) and high-frequency surgical tools.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• High-Current DC Connection: Equipped with 4-Pin Power DIN or Custom Lockable Connectors to safely handle 12.5A currents without overheating.
