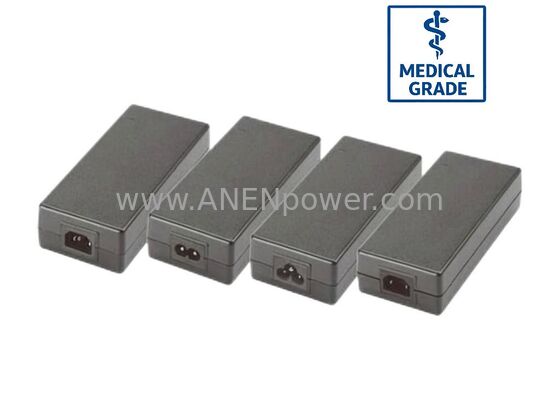

170W Medical Desktop AC Adapter 24V 7.08A 19V 8.9A Power Supply for Clinical System Device

170W Max Medical Desktop AC Adapter: 24V 7.08A / 19V 8.9A Ultra-Safe Power Solution

Product Overview

The 170W Max Medical Desktop AC Adapter is a high-capacity, clinical-grade power solution meticulously engineered for the robust energy demands of modern medical system devices. Delivering a stable 24V 7.08A or a high-current 19V 8.94A, this adapter is the premier power choice for High-End Clinical Workstations, Surgical Imaging Systems, and Integrated Diagnostic Hubs.

Strictly compliant with global medical safety standards (IEC 60601-1), it is built with reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinicians in high-acuity environments. The desktop form factor provides a secure, grounded connection that effectively minimizes electromagnetic interference (EMI), ensuring that sensitive clinical sensors, high-speed processors, and high-definition medical displays operate with absolute precision. Whether integrated into a mobile nursing workstation-on-wheels (WOW) or a fixed laboratory diagnostic system, this 170W unit delivers the sustained reliability and medical-grade protection required for mission-critical healthcare.

Key Specifications

Our medical series incorporates redundant safety layers and advanced thermal management to ensure fail-safe performance in 24/7 clinical settings.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 170W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 7.08A (170W Max - Standard for clinical automation and motors)

  • 19V/19.5V Series: 19V 8.9A / 19.5V 8.7A (170W Max - Ideal for medical-grade PCs)

  • 12V Series: 12V 14.1A (170W Max - High-current for multi-rail imaging logic)

  • 48V Series: 48V 3.54A (170W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent micro-shocks in patient-care zones.

• AC Inlet: IEC320-C14 (Grounded Class I for maximum EMI shielding).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 170W medical-grade output is optimized for high-performance clinical and diagnostic electronics:

• Clinical System Devices: High-end nursing workstations-on-wheels (WOW), medical-grade all-in-one PCs, and centralized monitoring hubs.

• Surgical Imaging: 4K/8K surgical displays, endoscopic video processors, and diagnostic workstations.

• Laboratory Automation: High-throughput blood analyzers, DNA sequencers, and automated pharmacy dispensers.

• Imaging Systems: High-performance ultrasound consoles and digital X-ray processing stations.

• Therapy Equipment: High-power therapeutic lasers and motorized rehabilitation systems.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Clinical-Grade EMI/EMC: Optimized to prevent interference with wireless hospital infrastructure (WLAN) and high-frequency surgical tools.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• High-Current DC Connection: Equipped with 4-Pin Power DIN or High-Current Aviation Connectors to safely manage 8.9A+ currents without terminal overheating.

• Advanced Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during power transients.
