200W Medical Desktop AC Adapter 24V 8.33A 12V 16.6A Power Supply for Hospital Equipment

200W Max Medical Desktop AC Adapter: 24V 8.33A / 12V 16.6A Ultra-Safe Power Solution

Product Overview

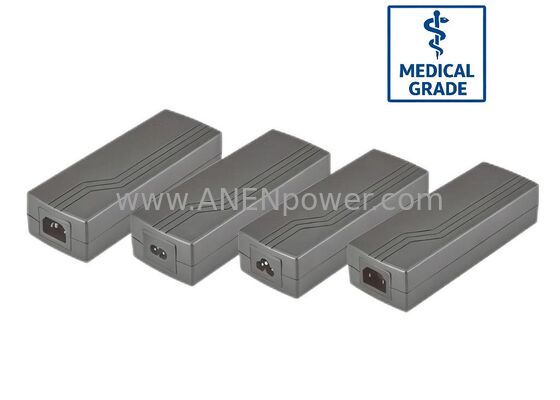

The 200W Max Medical Desktop AC Adapter is a high-capacity, clinical-grade power conversion unit engineered for the heavy-duty energy requirements of integrated hospital systems. Delivering a robust 24V 8.33A or a massive 12V 16.6A, this adapter is the premier choice for High-End Patient Monitors, Motorized Hospital Beds, Surgical Control Hubs, and Advanced Diagnostic Systems.

Strictly compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinical staff. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that sensitive diagnostic sensors and high-speed medical processors operate with absolute data integrity. Whether integrated into a critical care unit (ICU) or a mobile emergency station, this 200W unit delivers the sustained power and medical-grade protection required for life-critical healthcare.

Key Specifications

Our medical series incorporates redundant safety layers and advanced thermal management to ensure fail-safe performance in 24/7 hospital environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 200W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 8.33A (200W Max - Standard for clinical motors and automation)

  • 12V Series: 12V 16.6A (200W Max - Ultra-high current for parallel logic boards)

  • 19V/19.5V Series: 19V 10.5A / 19.5V 10.2A (200W Max - For medical workstations)

  • 48V Series: 48V 4.16A (200W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent micro-shocks in patient-care zones.

• AC Inlet: IEC320-C14 (Grounded Class I for maximum EMI shielding).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 200W medical-grade output is optimized for high-performance hospital and diagnostic electronics:

• Hospital Equipment: Motorized operating tables, nursing workstations-on-wheels (WOW), and smart pharmacy dispensers.

• Patient Monitoring: Centralized ICU monitoring stations and multi-parameter telemetry hubs.

• Surgical Imaging: 4K/8K surgical displays, endoscopic video processors, and diagnostic workstations.

• Laboratory Automation: High-throughput blood analyzers and automated DNA sequencing platforms.

• Life Support: Advanced hospital ventilators and anesthesia workstations.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Hospital-Grade EMI/EMC: Optimized to prevent interference with wireless hospital networks (WLAN) and high-frequency surgical tools.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Ultra-High Current DC Connection: Equipped with 4-Pin Power DIN or Custom Aviation Connectors to safely handle 16.6A currents without terminal overheating.

• Advanced Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during power transients.
