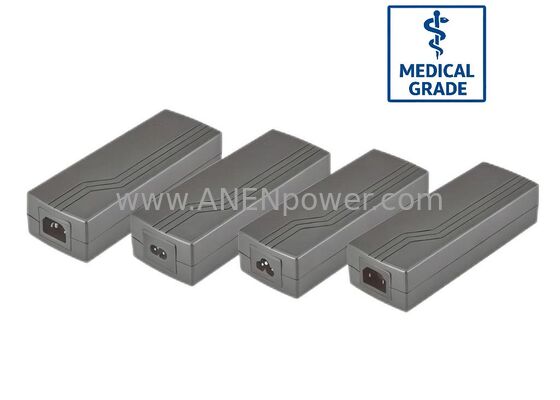

220W Medical Desktop AC Adapter 24V 9.16A 48V 4.58A Power Supply for Medical Power System

220W Max Medical Desktop AC Adapter: 24V 9.16A / 48V 4.58A Ultra-Safe Power Solution

Product Overview

The 220W Max Medical Desktop AC Adapter is a high-capacity, clinical-grade power conversion unit engineered for the heavy-duty energy requirements of integrated medical power systems. Delivering a robust 24V 9.16A or a stable 48V 4.58A, this adapter is the premier choice for Surgical Robot Controllers, High-Power Medical Carts, and Centralized Diagnostic Hubs.

Strictly compliant with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and clinical staff. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that high-speed medical processors and sensitive diagnostic sensors operate with absolute data integrity. Whether integrated into an advanced imaging suite or a mobile critical care station, this 220W unit delivers the sustained power and medical-grade protection required for mission-critical healthcare.

Key Specifications

Our medical series incorporates redundant safety layers and advanced thermal management to ensure fail-safe performance in 24/7 clinical environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 220W Continuous Maximum.

• Common Output Configurations:

  • 24V Series: 24V 9.16A (220W Max - Standard for clinical automation and actuators)

  • 48V Series: 48V 4.58A (220W Max - Ideal for PoE++ medical devices and high-voltage modules)

  • 12V Series: 12V 18.3A (220W Max - Ultra-high current for parallel computing logic)

  • 19V/19.5V Series: 19V 11.5A / 19.5V 11.2A (220W Max - For high-end medical workstations)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent micro-shocks in patient-care zones.

• AC Inlet: IEC320-C14 (Grounded Class I for maximum EMI shielding).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 220W medical-grade output is optimized for high-performance clinical and diagnostic electronics:

• Medical Power Systems: Centralized power hubs for surgical suites and mobile nursing workstations-on-wheels (WOW).

• Surgical Robotics: Robotic arm controllers, automated operating tables, and surgical navigation systems.

• Advanced Imaging: High-performance ultrasound consoles, mobile X-ray processors, and 4K/8K surgical displays.

• Clinical Computing: Medical-grade AI diagnostic servers and high-capacity laboratory automation hubs.

• Life Support: Hospital-grade ventilators and high-capacity anesthesia workstations.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection during invasive procedures.

• System-Grade EMI/EMC: Optimized to prevent interference with wireless hospital infrastructure (WLAN) and sensitive physiological monitoring.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• High-Current DC Connection: Equipped with 4-Pin Power DIN or High-Current Aviation Connectors to safely manage 9A+ currents without terminal overheating.

• Comprehensive Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during electrical transients.
