100W GaN Medical AC Adapter, 12V 8.3A Output for Laboratory Equipment

100W GaN Medical Desktop AC/DC Adapter: 12V 8.3A Ultra-High Efficiency

Product Overview

The 100W GaN Medical AC/DC Adapter is a next-generation power solution that redefines power density for clinical and research environments. By utilizing Gallium Nitride (GaN) technology, this adapter delivers a high-current 12V 8.3A output in a remarkably compact and cool-running form factor. It is the premier choice for Laboratory Equipment, Automated Analyzers, and High-Performance Medical Workstations.

Built to the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN architecture enables 93%+ efficiency, significantly reducing thermal stress and ensuring absolute safety for both patients and laboratory technicians. Its ultra-low leakage current and superior EMI shielding provide a secure, interference-free power link for sensitive diagnostic sensors and high-speed data processing units.

Key Specifications

Our 100W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 100W Continuous Maximum.

• Standard Output: 12V 8.3A (Optimized for laboratory centrifuges, incubators, and high-current logic).

• Other Available Outputs:

  • 15V 6.6A

  • 19V 5.26A

  • 24V 4.16A

  • 36V 2.77A

  • 48V 2.08A

  • 54V 1.85A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 93%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure safety in clinical and research zones.

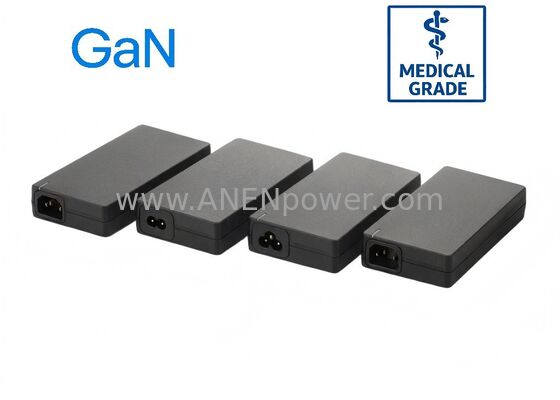

• AC Inlet: IEC320-C14 (3-Pin grounded) or C8 (2-Pin isolated) desktop configurations.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for intensive-use laboratory environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 100W medical-grade output is optimized for high-power diagnostic and research electronics:

• Laboratory Equipment: Blood analyzers, DNA sequencers, laboratory centrifuges, and automated titration systems.

• Diagnostic Monitoring: High-end patient monitors, portable ultrasound systems, and digital pathology scanners.

• Therapy Equipment: Mid-to-high power professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Motorized physical Rehabilitation Devices and advanced massage systems.

• Medical Computing: Medical-grade PCs, high-resolution diagnostic displays, and telemetry hubs.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical or laboratory procedures.

• Instrument-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive sensor data and high-resolution imaging.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that is ideal for sterile labs and quiet patient wards.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
