120W GaN Medical Power Supply, 12V 10A Output for Patient Monitor

120W GaN Medical Desktop AC/DC Adapter: 12V 10A Ultra-High Power Solution

Product Overview

The 120W GaN Medical AC/DC Adapter is a state-of-the-art, clinical-grade power solution designed for high-density medical applications. By integrating advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a massive 12V 10A output in a remarkably compact, high-efficiency form factor. It is specifically engineered for High-End Patient Monitors, Central Nursing Stations, and Multi-Parameter Telemetry Systems.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 94%+ efficiency, significantly reducing heat generation in busy clinical wards. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for patients and clinicians, ensuring interference-free performance for sensitive monitoring electronics.

Key Specifications

Our 120W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 120W Continuous Maximum.

• Standard Output: 12V 10A (Optimized for large-screen patient monitors and medical-grade displays).

• Other Available Outputs:

  • 15V 8A

  • 19V 6.31A

  • 24V 5A

  • 36V 3.33A

  • 48V 2.5A

  • 54V 2.22A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 94%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

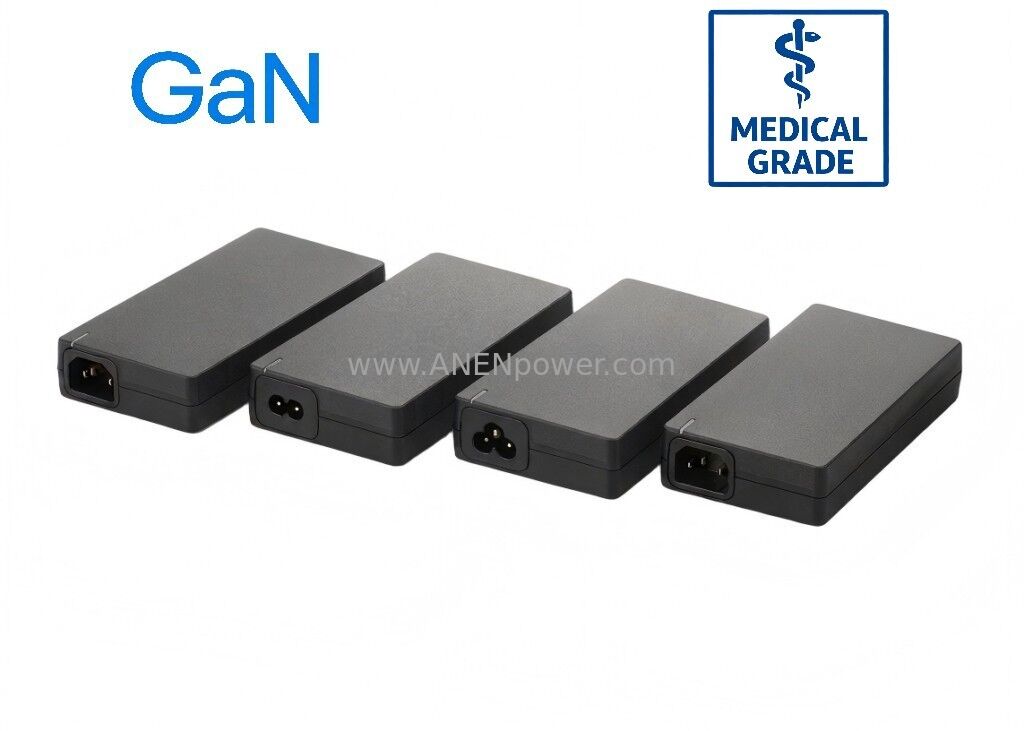

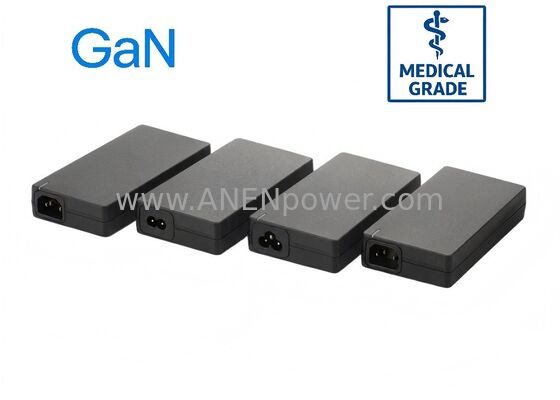

• AC Inlet: IEC320-C14 (3-Pin grounded) or C8 (2-Pin isolated) desktop configurations.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 120W medical-grade output is optimized for high-power diagnostic and monitoring electronics:

• Patient Monitoring: High-resolution multi-parameter bedside monitors, central monitoring workstations, and medical tablets.

• Diagnostic Devices: Portable ultrasound systems, digital pathology scanners, and ECG processing units.

• Therapy Equipment: High-power professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Motorized physical Rehabilitation Devices and advanced massage systems.

• Medical Computing: High-performance nursing cart PCs and high-resolution diagnostic displays.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Monitoring-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive physiological data (ECG, EEG, SpO2) from electrical interference.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
