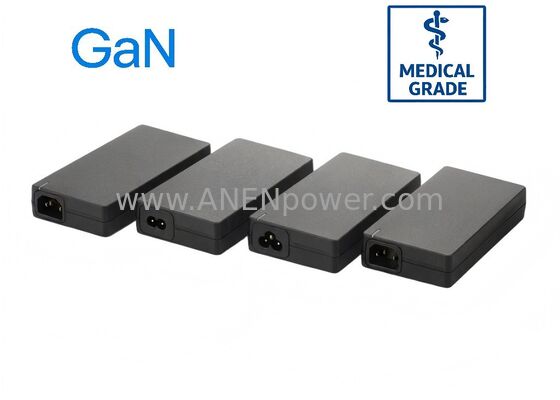

130W GaN Medical AC Adapter, 20V 6.5A Output for Diagnostic Console

130W GaN Medical Desktop AC/DC Adapter: 20V 6.5A Ultra-High Efficiency

Product Overview

The 130W GaN Medical AC/DC Adapter is a cutting-edge, clinical-grade power solution that redefines power density and thermal efficiency. By integrating advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a robust 20V 6.5A output in a compact, lightweight form factor. It is the premier choice for Medical Diagnostic Consoles, Portable Ultrasound Systems, and High-Resolution Imaging Workstations.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 94%+ efficiency, significantly reducing heat generation in sterile clinical environments. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for both patients and clinicians, ensuring absolute signal integrity for sensitive diagnostic electronics.

Key Specifications

Our 130W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 130W Continuous Maximum.

• Standard Output: 20V 6.5A (Optimized for imaging processors and medical-grade computing consoles).

• Other Available Outputs:

  • 12V 10.8A

  • 15V 8.6A

  • 19V 6.84A

  • 24V 5.4A

  • 36V 3.61A

  • 48V 2.7A

  • 54V 2.4A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 94%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

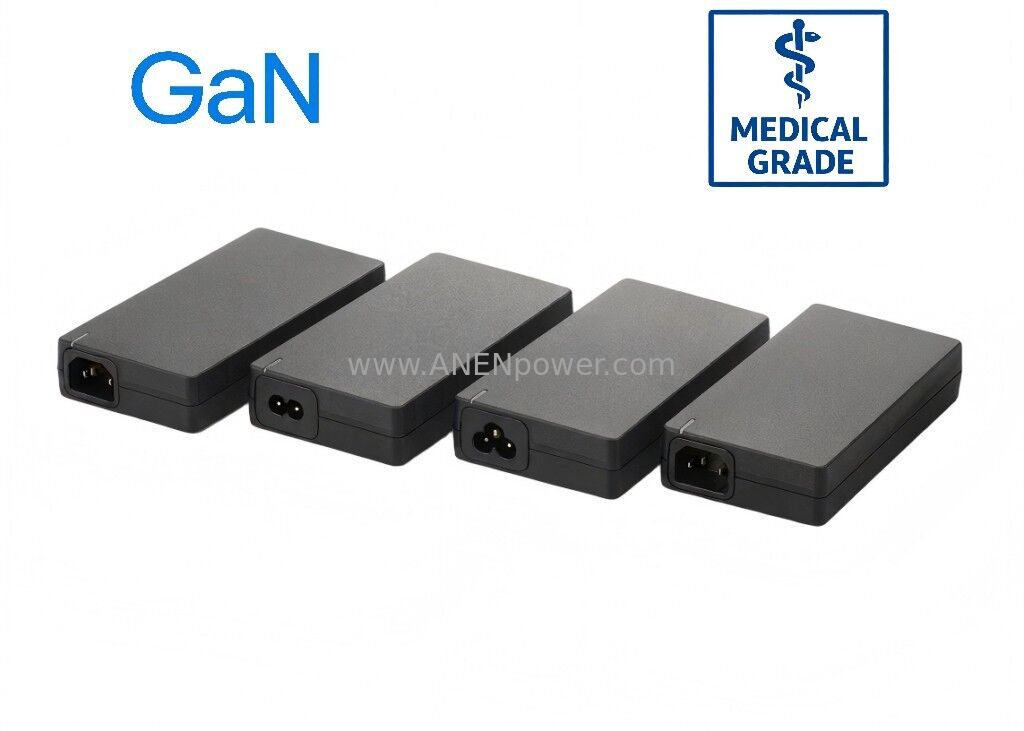

• AC Inlet: IEC320-C14 (3-Pin grounded) or C8 (2-Pin isolated) desktop configurations.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 130W medical-grade output is optimized for high-power diagnostic and therapeutic electronics:

• Diagnostic Consoles: High-resolution ultrasound consoles, digital radiology processing units, and pathology workstations.

• Imaging Systems: Portable MRI/CT peripheral controllers and high-performance medical displays.

• Therapy Equipment: High-power professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy stations.

• Medical Computing: Mobile nursing carts with integrated high-performance PCs and AI-assisted diagnostic tools.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Imaging-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of high-speed digital signals and sensitive diagnostic images from electrical artifacts.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
