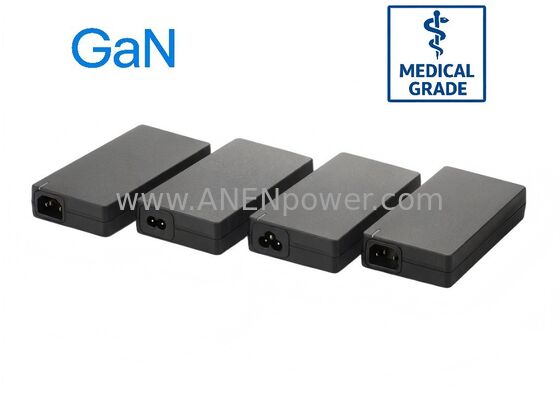

135W GaN Medical Power Supply, 15V 9A Output for Portable Ultrasound

135W GaN Medical Desktop AC/DC Adapter: 15V 9A Ultra-High Efficiency

Product Overview

The 135W GaN Medical AC/DC Adapter is a cutting-edge, clinical-grade power solution that sets a new standard for power density and thermal efficiency. By integrating advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a robust 15V 9A output in a compact, lightweight form factor. It is the premier choice for Portable Ultrasound Systems, Handheld Diagnostic Imaging Devices, and High-Resolution Medical Consoles.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 94%+ efficiency, significantly reducing heat generation in sterile clinical environments. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for both patients and clinicians, ensuring absolute signal integrity for sensitive diagnostic imaging electronics.

Key Specifications

Our 135W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 135W Continuous Maximum.

• Standard Output: 15V 9A (Optimized for high-performance ultrasound processors and imaging logic).

• Other Available Outputs:

  • 12V 11.25A

  • 19V 7.1A

  • 20V 6.75A

  • 24V 5.6A

  • 36V 3.75A

  • 48V 2.8A

  • 54V 2.5A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 94%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

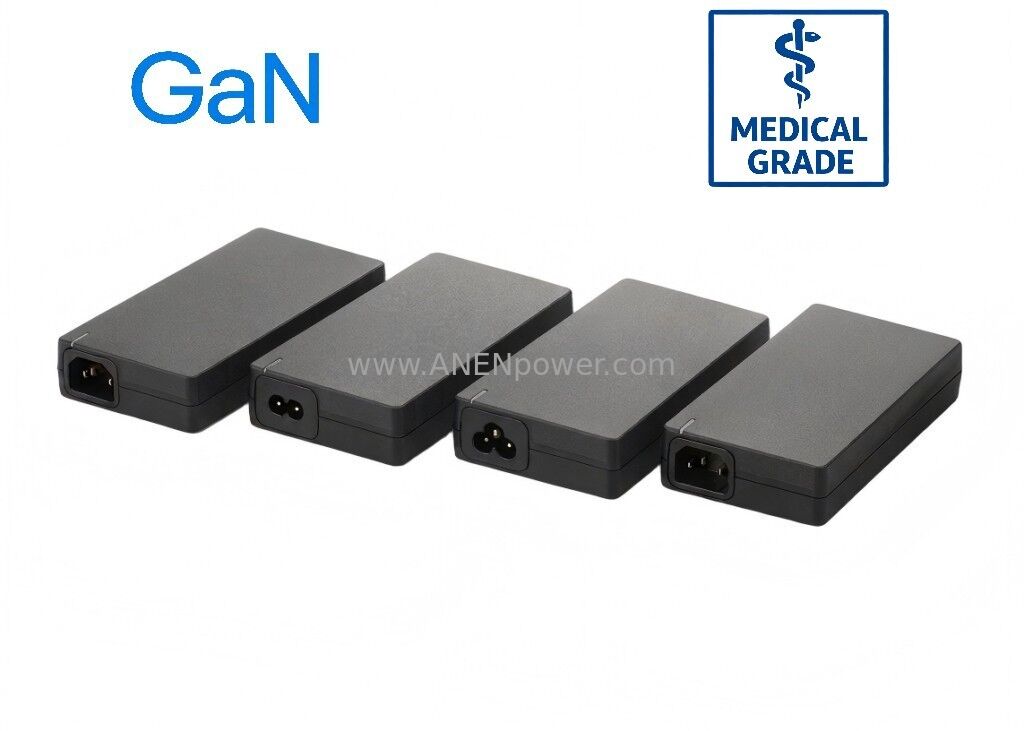

• AC Inlet: IEC320-C14 (3-Pin grounded) or C8 (2-Pin isolated) desktop configurations.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 135W medical-grade output is optimized for high-power diagnostic and therapeutic electronics:

• Imaging Systems: Portable ultrasound machines, color Doppler systems, and digital radiology processing units.

• Diagnostic Consoles: High-resolution pathology workstations and cardiology monitoring hubs.

• Therapy Equipment: High-power professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy stations.

• Medical Computing: Mobile nursing carts with integrated high-performance PCs and AI-assisted diagnostic tools.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Imaging-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of high-speed digital signals and preventing electrical artifacts from distorting ultrasound images.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
