150W GaN Medical AC Adapter, 24V 6.25A Output for Therapy Controller

150W GaN Medical Desktop AC/DC Adapter: 24V 6.25A Ultra-High Efficiency

Product Overview

The 150W GaN Medical AC/DC Adapter is a next-generation, clinical-grade power solution that redefines power density and thermal performance for therapeutic applications. By integrating advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a robust 24V 6.25A output in a compact, lightweight form factor. It is the premier choice for Advanced Therapy Controllers, Motorized Surgical Beds, and High-Power Rehabilitation Systems.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 94%+ efficiency, significantly reducing heat generation during continuous treatment sessions. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for both patients and clinicians, ensuring absolute reliability for mission-critical Therapy Units.

Key Specifications

Our 150W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 150W Continuous Maximum.

• Standard Output: 24V 6.25A (Optimized for therapy controllers and motorized clinical actuators).

• Other Available Outputs:

  • 12V 12.5A

  • 15V 10A

  • 19V 7.89A

  • 20V 7.5A

  • 36V 4.16A

  • 48V 3.12A

  • 54V 2.77A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 94%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

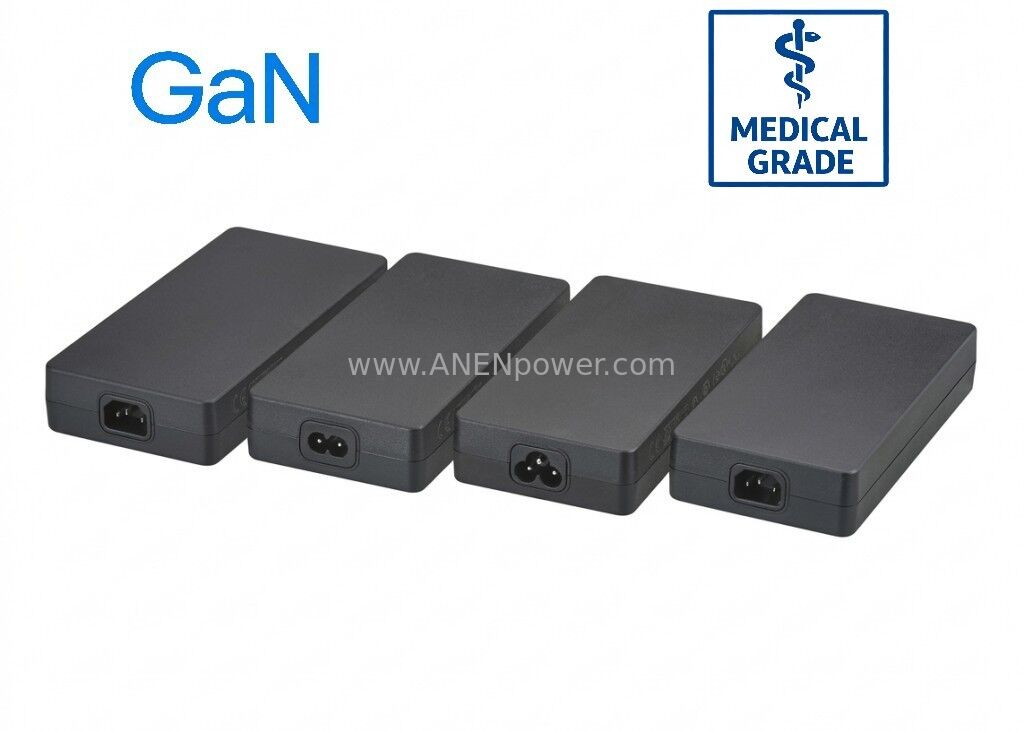

• AC Inlet: IEC320-C14 (3-Pin grounded) or C8 (2-Pin isolated) desktop configurations.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 150W medical-grade output is optimized for high-power therapeutic and diagnostic electronics:

• Therapy Controllers: Professional laser Therapy Units, shockwave Therapy Units, and clinical aesthetics controllers.

• Surgical Equipment: Motorized surgical tables, high-intensity surgical lighting, and endoscopy processors.

• Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy stations.

• Imaging Systems: Portable ultrasound machines and digital radiology processing units.

• Diagnostic Monitoring: High-end patient monitors and medical-grade computing consoles.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Precision-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive control signals and preventing interference with therapeutic sensors.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
