170W GaN Medical AC/DC Adapter, 48V 3.54A Output for Motion Therapy System

170W GaN Medical Desktop AC/DC Adapter: 48V 3.54A Ultra-High Efficiency

Product Overview

The 170W GaN Medical AC/DC Adapter is a flagship, clinical-grade power solution designed to meet the rigorous energy demands of modern robotic and motorized healthcare systems. By integrating advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a high-voltage 48V 3.54A output with industry-leading efficiency. It is the premier choice for Motion Therapy Systems, Robotic Rehabilitation Exoskeletons, and High-Precision Surgical Actuators.

Built to the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 94%+ efficiency, significantly reducing heat generation during intensive physical therapy sessions. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for patients and clinicians, ensuring absolute reliability for mission-critical Therapy Units.

Key Specifications

Our 170W GaN medical series maximizes power density while offering a versatile range of high-performance voltage outputs for specialized medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 170W Continuous Maximum.

• Standard Output: 48V 3.54A (Optimized for high-voltage motion controllers and brushless DC motors).

• Other Available Outputs:

  • 12V 14.1A

  • 15V 11.3A

  • 19V 8.94A

  • 24V 7.08A

  • 36V 4.72A

  • 54V 3.14A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 94%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care and therapy zones.

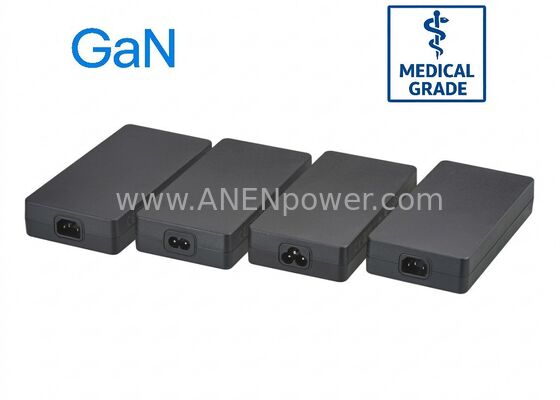

• AC Inlet: IEC320-C14 (3-Pin grounded) or C8 (2-Pin isolated) desktop configurations.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 170W medical-grade output is optimized for high-power motion and therapeutic electronics:

• Motion Therapy Systems: Robotic gait trainers, upper-limb rehabilitation robots, and automated stretching systems.

• Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy stations.

• Surgical Equipment: Motorized surgical tables, high-power orthopedic tools, and endoscopy towers.

• Therapy Equipment: High-intensity professional Therapy Units and clinical Therapy Units.

• Diagnostic Systems: High-performance medical computing workstations and multi-display diagnostic centers.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during active patient treatment.

• Motor-Grade Peak Power Management: Specifically engineered to handle the high inrush currents and back-EMF common in Motion Therapy Systems without triggering protection faults.

• Precision-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting sensitive motor encoders and control logic from electrical interference.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
