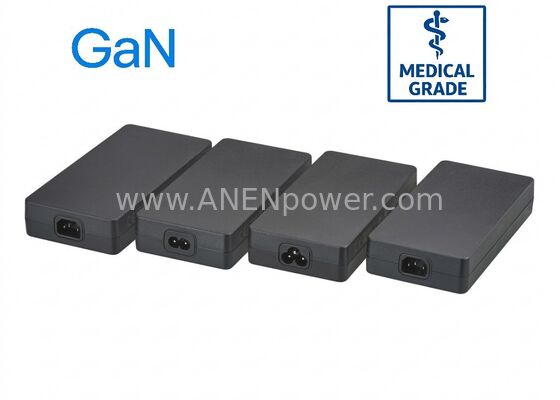

180W GaN Medical Power Supply, 24V 7.5A Output for Clinical Display

180W GaN Medical Desktop AC/DC Adapter: 24V 7.5A Ultra-High Power Solution

Product Overview

The 180W GaN Medical AC/DC Adapter is a high-performance, clinical-grade power solution engineered for mission-critical visual diagnostic equipment. By integrating advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a robust 24V 7.5A output with industry-leading power density. It is the premier choice for High-Resolution Clinical Displays, Surgical Monitors, and Diagnostic Imaging Workstations.

Built to the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 94%+ efficiency, significantly reducing heat generation in cramped clinical settings or behind wall-mounted displays. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for patients and clinicians, ensuring interference-free performance for high-fidelity medical imaging.

Key Specifications

Our 180W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for professional healthcare hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 180W Continuous Maximum.

• Standard Output: 24V 7.5A (Optimized for large-format surgical displays and imaging consoles).

• Other Available Outputs:

  • 12V 15A

  • 15V 12A

  • 19V 9.47A

  • 36V 5A

  • 48V 3.75A

  • 54V 3.33A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 94%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

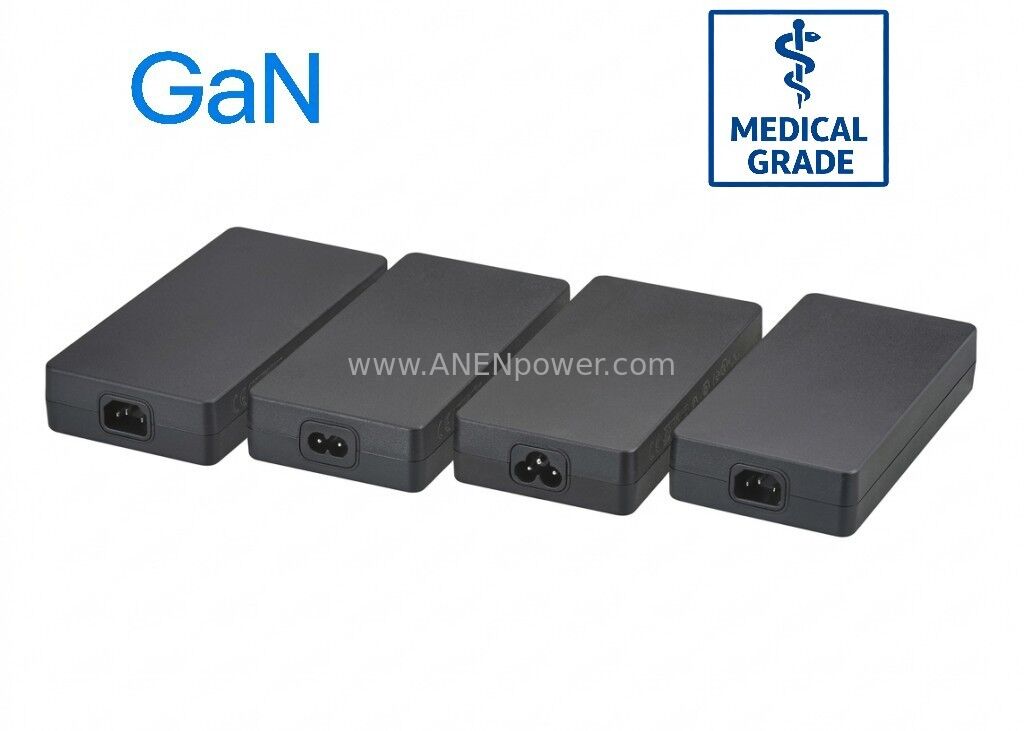

• AC Inlet: IEC320-C14 (3-Pin grounded) or C8 (2-Pin isolated) desktop configurations.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for intensive-use hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 180W medical-grade output is optimized for high-power diagnostic and monitoring electronics:

• Clinical Displays: High-resolution 4K surgical monitors, radiology workstation displays, and bedside clinical terminals.

• Imaging Systems: Portable ultrasound systems, digital pathology scanners, and endoscopy video towers.

• Therapy Equipment: High-power professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy stations.

• Medical Computing: Mobile nursing carts with integrated high-performance PCs and AI-assisted diagnostic tools.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Display-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of high-speed digital signals and preventing visual artifacts in sensitive diagnostic images.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
