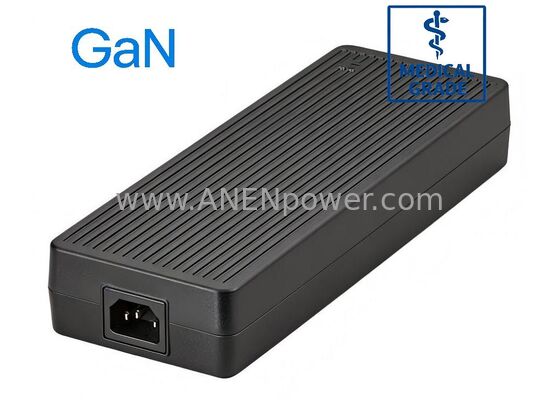

330W GaN Medical AC/DC Adapter, 48V 6.9A Output for Imaging Control System

330W GaN Medical Desktop AC/DC Adapter: 48V 6.9A Ultra-High Power Solution

Product Overview

The 330W GaN Medical AC/DC Adapter is a flagship-tier, clinical-grade power solution that represents the cutting edge of power density in healthcare technology. By integrating advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a massive 48V 6.9A output with industry-leading efficiency. It is the premier choice for Medical Imaging Control Systems, Robotic Surgical Consoles, and High-Intensity Laser Therapy Platforms.

Built to the most rigorous global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 95%+ efficiency, which minimizes thermal output and eliminates the need for internal cooling fans. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for both patients and clinicians, ensuring absolute signal integrity for mission-critical diagnostic imaging and high-precision therapeutic hardware.

Key Specifications

Our 330W GaN medical series maximizes reliability while offering a versatile range of high-voltage, high-current outputs for specialized medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 330W Continuous Maximum.

• Standard Output: 48V 6.9A (Optimized for high-voltage imaging controllers and heavy-duty surgical motors).

• Other Available Outputs:

  • 12V 25A

  • 15V 20A

  • 19V 17.3A

  • 24V 13.75A

  • 36V 9.16A

  • 54V 6.11A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 95%+ Efficiency and a slim, high-density design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

• AC Inlet: IEC320-C14 (3-Pin grounded) desktop configuration.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 330W medical-grade output is optimized for high-power diagnostic and surgical electronics:

• Imaging Control Systems: Mobile CT/X-ray processing hubs, 3D medical imaging workstations, and high-performance ultrasound consoles.

• Surgical Robotics: Robotic surgery control units, motorized surgical table systems, and high-power orthopedic power tools.

• Therapy Equipment: High-intensity professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy robotic stations.

• Laboratory Systems: Large-scale automated blood analyzers and high-speed centrifuges.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Precision-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of high-speed digital signals and preventing visual artifacts in sensitive diagnostic imaging.

• Secure Power Delivery: Equipped with high-current locking DC connectors (e.g., 4-Pin/6-Pin Power DIN) to safely handle the 330W load without heat buildup or accidental disconnection.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
