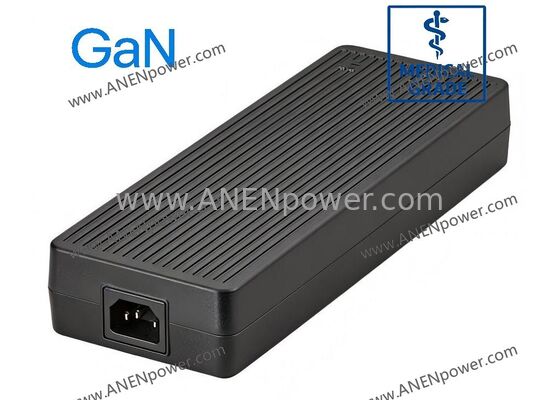

360W GaN Medical Power Supply, 24V 15A Output for Multi-Channel Patient Monitor

360W GaN Medical Desktop Power Supply: 24V 15A Ultra-High Power Solution

Product Overview

The 360W GaN Medical Desktop Power Supply is a premier, clinical-grade power solution engineered for high-density medical monitoring and diagnostic environments. By integrating advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a massive 24V 15A output with industry-leading efficiency and power density. It is the ideal choice for Multi-Channel Patient Monitors, Centralized Nursing Stations, and High-Performance Surgical Displays.

Built to the most rigorous global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 95%+ efficiency, which minimizes thermal output and eliminates the need for internal cooling fans. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for both patients and clinicians, ensuring absolute signal integrity for sensitive diagnostic sensors and high-speed data processing units.

Key Specifications

Our 360W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 360W Continuous Maximum.

• Standard Output: 24V 15A (Optimized for centralized monitoring hubs and medical-grade computing consoles).

• Other Available Outputs:

  • 12V 25A

  • 15V 20A

  • 19V 18.9A

  • 36V 10A

  • 48V 7.5A

  • 54V 6.66A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 95%+ Efficiency and a sleek, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

• AC Inlet: IEC320-C14 (3-Pin grounded) desktop configuration.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for intensive-use hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 360W medical-grade output is optimized for high-power diagnostic and monitoring electronics:

• Monitoring Systems: Multi-parameter bedside monitors, central telemetry stations, and high-density vital signs displays.

• Diagnostic Imaging: 3D medical imaging workstations, mobile X-ray processing units, and high-performance ultrasound consoles.

• Therapy Equipment: High-power professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Advanced motorized Rehabilitation Devices and intensive physical therapy robotic stations.

• Surgical Systems: Robotic surgery control units and motorized surgical table platforms.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Signal-Grade Low Ripple: Specialized multi-stage output filtering to ensure Low Ripple & Noise, protecting the integrity of high-speed digital signals and sensitive physiological data (ECG, EEG, SpO2).

• High-Current Security: Equipped with heavy-duty, multi-pin locking DC connectors (e.g., 4-Pin/6-Pin Power DIN) to safely handle the 15A load without heat buildup or accidental disconnection.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
