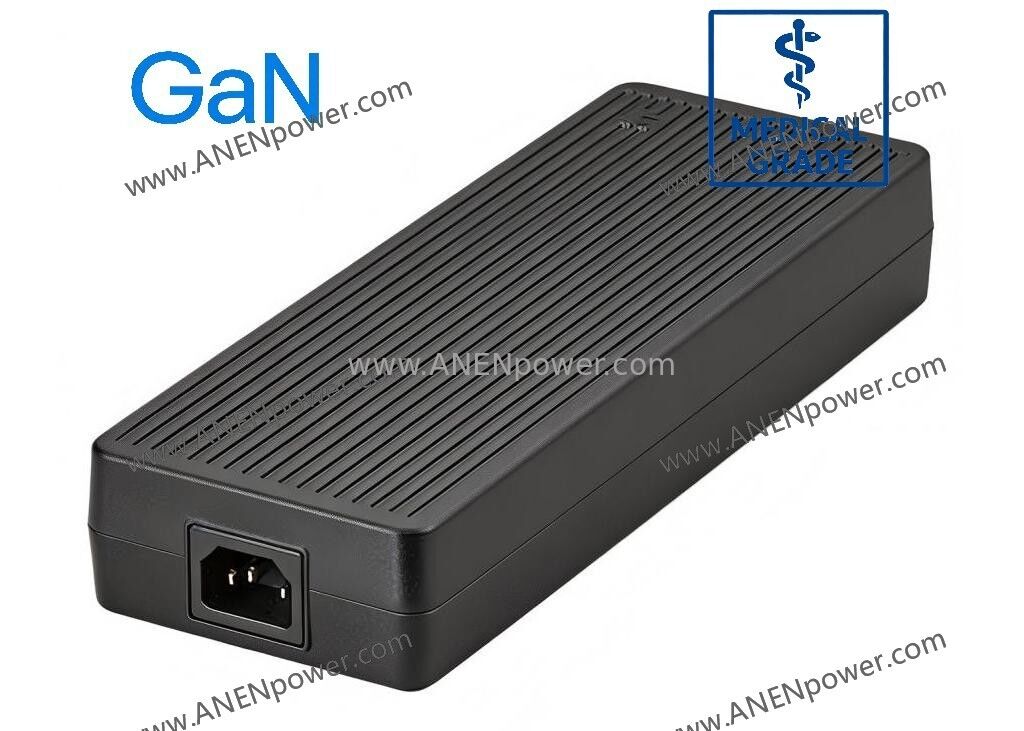

420W GaN Medical AC Adapter, 28V 15A Output for Clinical Treatment Unit

420W GaN Medical Desktop AC/DC Adapter: 28V 15A Ultra-High Power Solution

Product Overview

The 420W GaN Medical AC/DC Adapter is a heavy-duty, clinical-grade power solution that pushes the boundaries of power density in the medical sector. By leveraging advanced Gallium Nitride (GaN) power semiconductors, this adapter delivers a massive 28V 15A output in a remarkably compact form factor. It is the premier choice for High-Power Clinical Treatment Units, Surgical Laser Systems, and Motorized Patient Positioning Platforms.

Built to the highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 95%+ efficiency, which minimizes heat dissipation and enables a completely fanless design—essential for maintaining sterile conditions in operating theaters and treatment rooms. Its ultra-low leakage current and superior isolation ensure absolute safety for patients and practitioners during intensive-use medical procedures.

Key Specifications

Our 420W GaN medical series maximizes reliability while offering a versatile range of high-current voltage outputs for mission-critical medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 420W Continuous Maximum.

• Standard Output: 28V 15A (Optimized for clinical treatment controllers and high-power therapeutic lasers).

• Other Available Outputs:

  • 12V 35A

  • 24V 17.5A

  • 36V 11.6A

  • 48V 8.75A

  • 54V 7.77A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 95%+ Efficiency and a sleek, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

• AC Inlet: IEC320-C14 (3-Pin grounded) desktop configuration.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for intensive-use hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 420W medical-grade output is optimized for high-power therapeutic and surgical electronics:

• Clinical Treatment Units: High-intensity professional Therapy Units, advanced surgical laser systems, and cryotherapy controllers.

• Surgical Systems: Heavy-duty motorized surgical tables, orthopedic robotic assistants, and endoscopy power hubs.

• Therapy Equipment: Specialized high-power Therapy Units and medical-grade aesthetics devices.

• Rehabilitation: Advanced robotic Rehabilitation Devices and high-torque physical therapy stations.

• Imaging Systems: Mobile X-ray processing stations and centralized imaging workstations.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Industrial-Strength Power Delivery: Equipped with heavy-duty, multi-pin locking DC connectors (e.g., 6-Pin Power DIN or high-current circular connectors) to safely manage the 15A load without electrical arcing or heat buildup.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile environments.

• Motor-Grade Peak Load Handling: Engineered to manage the high inrush currents typical of motorized treatment systems and therapeutic actuators.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
