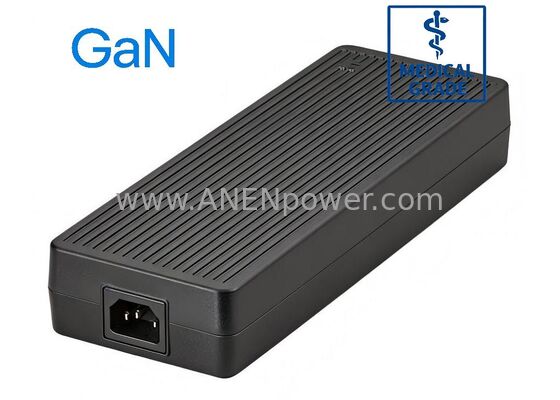

450W GaN Medical Power Solution, 54V 8.3A Output for Rehabilitation Drive System

450W GaN Medical Desktop Power Solution: 54V 8.3A Ultra-High Power

Product Overview

The 450W GaN Medical Power Solution is an industry-leading, clinical-grade power adapter designed for the most demanding motorized healthcare applications. By utilizing state-of-the-art Gallium Nitride (GaN) technology, this unit delivers a high-voltage 54V 8.3A output with a power density previously impossible in a fanless desktop form factor. It is the premier choice for Rehabilitation Drive Systems, Robotic Exoskeletons, and High-Torque Physical Therapy Platforms.

Built to the absolute highest global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 95.5%+ efficiency, minimizing heat generation during intensive, long-duration rehabilitation sessions. Its reinforced isolation barrier and ultra-low leakage current design provide an essential safety shield for patients and clinicians, ensuring absolute reliability for high-power Therapy Units and motorized clinical actuators.

Key Specifications

Our 450W GaN medical series maximizes power delivery while offering a range of high-performance voltage outputs for specialized medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 450W Continuous Maximum.

• Standard Output: 54V 8.3A (Optimized for high-efficiency brushless DC motors and robotic drive trains).

• Other Available Outputs:

  • 24V 18.75A

  • 28V 16.1A

  • 36V 12.5A

  • 48V 9.37A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 95.5%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care and therapy zones.

• AC Inlet: IEC320-C14 (3-Pin grounded) desktop configuration.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 450W medical-grade output is optimized for heavy-duty therapeutic and diagnostic electronics:

• Rehabilitation Drive Systems: Robotic gait trainers, lower-limb exoskeletons, and heavy-duty motorized treadmills.

• Motion Control: Multi-axis rehabilitation robots and high-precision patient positioning systems.

• Therapy Equipment: High-intensity professional Therapy Units and clinical Therapy Units.

• Surgical Systems: Motorized surgical tables, high-power orthopedic tools, and surgical robotic consoles.

• Imaging Systems: Mobile CT/X-ray processing units and centralized high-performance imaging workstations.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during active patient treatment.

• Motor-Grade Peak Power Handling: Specifically engineered to manage the high inrush currents and back-EMF typical of Rehabilitation Drive Systems without triggering false-trips.

• High-Voltage Secure Delivery: Equipped with high-current locking DC connectors (e.g., 6-Pin Power DIN or circular medical connectors) to safely manage the 8.3A load at 54V without heat buildup or accidental disconnection.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
