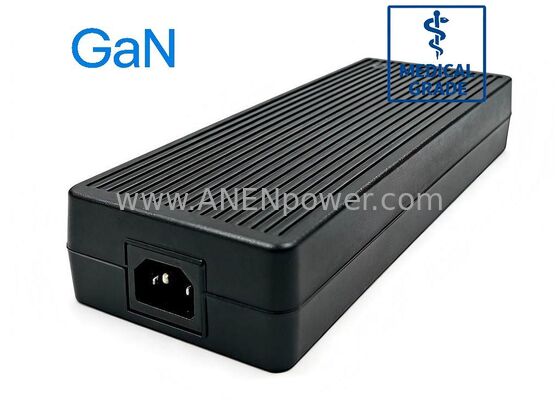

600W GaN Medical Power Supply, 48V 12.5A Output IEC 60601-1 2xMOPP for Surgical System

600W GaN Medical Desktop Power Supply: 48V 12.5A Peak Performance Solution

Product Overview

The 600W GaN Medical Desktop Power Supply is the ultimate clinical-grade power solution, engineered for the next generation of high-energy surgical and diagnostic equipment. By integrating cutting-edge Gallium Nitride (GaN) power semiconductors, this unit delivers a massive 48V 12.5A output with an industry-leading efficiency of 96%. It is the premier choice for Robotic Surgical Systems, High-Energy Laser Consoles, and Multi-Axis Motorized Operating Tables.

Built to exceed the most stringent global medical safety benchmarks, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture allows for a completely fanless, silent design, which is essential for maintaining sterile and quiet environments in operating theaters and intensive care units. With ultra-low leakage current and professional-grade EMI suppression, it ensures absolute reliability for mission-critical surgical hardware and sensitive intraoperative monitoring.

Key Specifications

Our 600W GaN medical series maximizes power density while offering a versatile range of high-performance voltage outputs for specialized healthcare electronics.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 600W Continuous Maximum.

• Standard Output: 48V 12.5A (Optimized for surgical robotics and high-voltage motor drivers).

• Other Available Outputs:

  • 19V 31.5A

  • 24V 25A

  • 28V 21.4A

  • 36V 16.7A

  • 54V 11.1A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 96%+ Efficiency and a high-density, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

• AC Inlet: IEC320-C14 (3-Pin grounded) desktop configuration.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for intensive-use hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 600W medical-grade output is optimized for high-power surgical and therapeutic electronics:

• Surgical Systems: Robotic surgery control hubs, motorized surgical table platforms, and orthopedic power tool systems.

• Therapy Equipment: High-intensity professional Therapy Units, advanced surgical laser systems, and high-power shockwave therapy devices.

• Rehabilitation: Heavy-duty motorized Rehabilitation Devices and robotic gait training systems.

• Imaging Platforms: Mobile C-arm systems, 4K/8K surgical video towers, and centralized medical imaging workstations.

• Laboratory Systems: High-throughput automated blood analyzers and large-scale clinical centrifuges.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• Heavy-Duty Secure Connectivity: Equipped with high-retention, multi-pin locking DC connectors (e.g., 8-Pin Power DIN or circular medical connectors) to safely handle high-current loads without electrical arcing or heat buildup.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile environments.

• Surgical-Grade Low Ripple: Specialized multi-stage output filtering to protect the integrity of high-speed digital signals and prevent interference with sensitive surgical sensors.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
