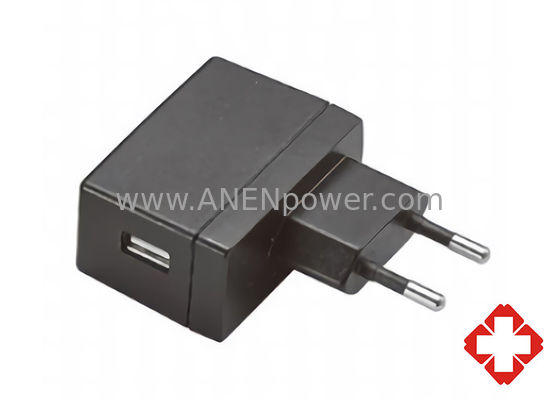

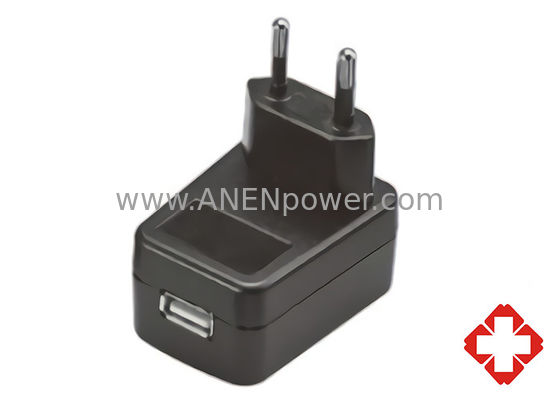

EN 60601 Certified Medical Power Adapter 5V 2A 12V 24V EU Plug for Patient Monitoring Hospital Clinical Equipment
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 12W Max |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| Weight: | 70g | MTBF: | 100,000 Calculated Hours |
EN 60601 Certified Medical Power Adapter 5V 2A 12V 24V EU Plug for Patient Monitoring Hospital Clinical Equipment
EN/IEC 60601 certified medical-grade power supply delivering triple output capability: 5V 2A USB port, 12V DC, and 24V charging with EU plug compatibility for critical patient monitoring systems. Engineered to meet stringent European medical safety standards with built-in over-voltage, over-current, and short-circuit protection for uninterrupted clinical operation. This CE certified power adapter provides medical-grade isolation and electromagnetic compatibility to safely power sensitive hospital equipment including ECG monitors, blood pressure devices, pulse oximeters, and portable diagnostic instruments. Designed for demanding healthcare environments, the compact adapter maintains stable voltage regulation and thermal management ensuring reliable performance in 24/7 hospital settings, emergency rooms, and clinical facilities where power stability directly impacts patient safety and monitoring accuracy.
• Power Range: 12W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~24 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 55L x 27W x 55H (mm)
• Weight: 70g
|
Model NO. |
MAX OUTPUT POWER |
OUTPUT VOLTAGE |
MIN LOAD |
MAX LOAD |
LOAD REGULATION |
LINE REGULATION |
RIPPLE & NOISE |
|
APM12EA |
12W |
5-8V |
0A |
2.4A |
±5% |
±1% |
100mV |
|
APM12EB |
12W |
9-11V |
0A |
1.33A |
±5% |
±1% |
180mV |
|
APM12EC |
12W |
12-17V |
0A |
1.0A |
±5% |
±1% |
250mV |
|
APM12ED |
12W |
18-24V |
0A |
0.66A |
±5% |
±1% |
350mV |
