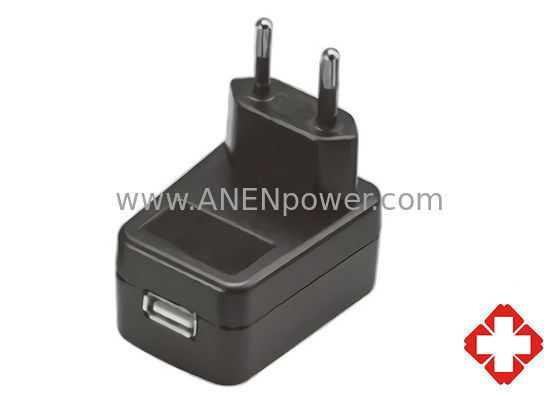

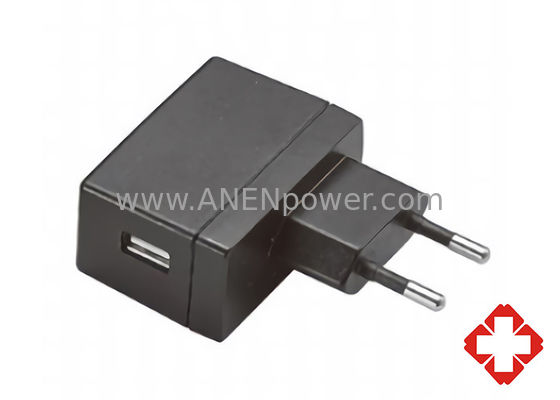

EN 60601 Certified Medical Power Adapter 5V 2A 12V 24V EU Plug for Portable Oxygen Concentrators
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240Vac, 50/60Hz | Power Range: | 4.5 ~ 6W |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 55L X 27W X 55H (mm) |
EN 60601 Certified Medical Power Adapter 5V 2A 12V 24V EU Plug for Portable Oxygen Concentrators
EN/IEC 60601 certified medical-grade power adapter specifically engineered for portable oxygen concentrators requiring reliable multi-voltage operation. This EU plug adapter delivers three critical outputs: 5V 2A USB charging, 12V DC, and 24V DC power with medical-grade isolation and electromagnetic compatibility for sensitive respiratory equipment. Designed for hospital and home healthcare environments, it features over-voltage, over-current, and short-circuit protection to ensure uninterrupted oxygen therapy delivery. The compact, CE-certified design meets stringent European medical safety standards while providing stable power for life-critical oxygen concentrators used in patient care, emergency response, and long-term respiratory treatment. Built with thermal protection and voltage regulation to maintain consistent oxygen flow rates and device performance during extended operation, ensuring patient safety and equipment reliability where every breath matters.
• Power Range: 4.5~6W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~18 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 55L x 27W x 55H (mm)
• Weight: 70g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM05EA | 6W | 5-18V | 0A | 1.2A | ±5% | ±1% | 100mV |
| APM05EB | 6W | 9-12V | 0A | 0.66A | ±5% | ±1% | 180mV |
| APM05EC | 4.5W | 9V | 0A | 0.5A | ±5% | ±1% | 180mV |
| APM05ED | 6W | 9V | 0A | 0.67A | ±5% | ±1% | 180mV |
