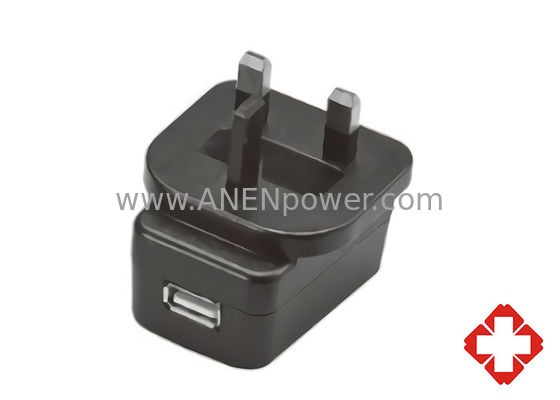

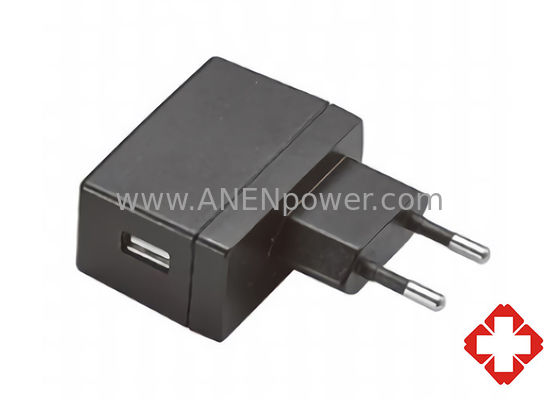

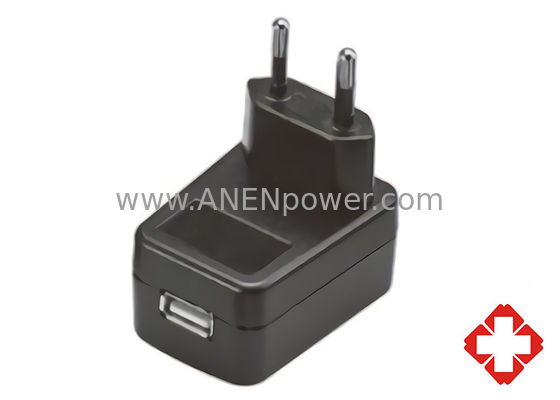

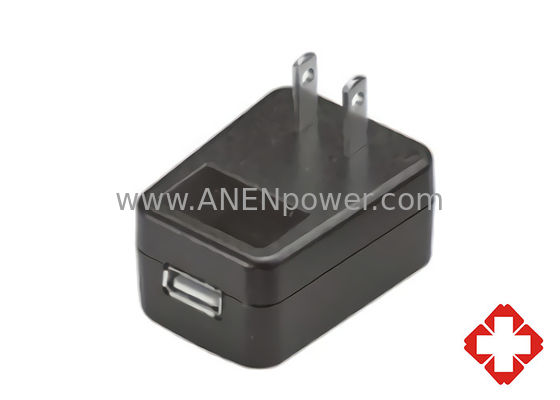

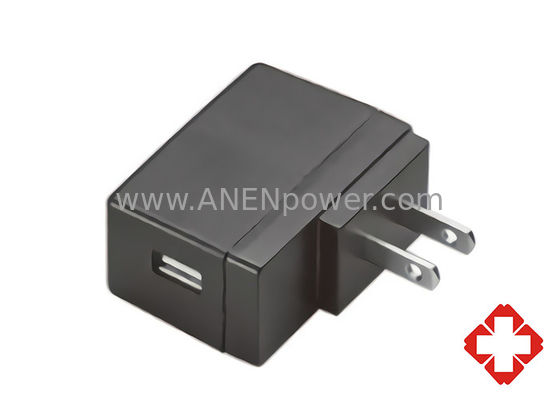

EN 60601 Certified Medical Power Adapter 5V 2A 12V 24V EU Plug for Dental Equipment Instruments
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 4.5 ~ 6W |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 53L X 41W X 36H |
EN 60601 Certified Medical Power Adapter 5V 2A 12V 24V EU Plug for Dental Equipment Instruments
EN/IEC 60601 certified medical-grade power supply delivering triple output: 5V 2A USB port, 12V AC adapter, and 24V USB charger with EU plug compatibility. Specifically engineered for professional dental equipment including dental chairs, curing lights, intraoral cameras, and surgical instruments. Features medical-grade isolation, over-voltage protection, and electromagnetic compatibility to ensure safe operation in clinical environments. CE certified with thermal protection and stable voltage regulation for uninterrupted dental procedures in clinics and hospitals. Compact design meets European medical safety standards for reliable power delivery to sensitive dental instruments requiring certified performance.
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Power Range: 6W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, C: China, E:EU, K:UK, A: SAA, S: South Africa
• Output voltage available from 5~24 VDC
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 53L x 41W x 36H
• Weight: 70grams
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM05EA | 6W | 5-18V | 0A | 1.2A | ±5% | ±1% | 100mV |
| APM05EB | 6W | 9-12V | 0A | 0.66A | ±5% | ±1% | 180mV |
| APM05EC | 4.5W | 9V | 0A | 0.5A | ±5% | ±1% | 180mV |
| APM05ED | 6W | 9V | 0A | 0.67A | ±5% | ±1% | 180mV |
