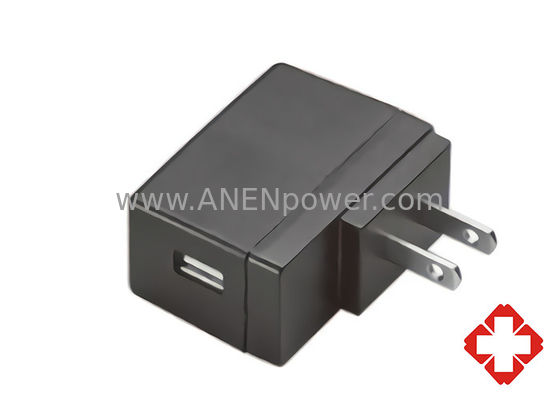

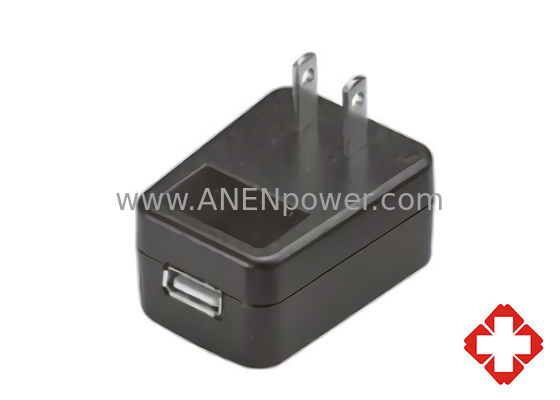

UL 60601 Certified Medical Power Adapter 5V 2A 12V 24V US Plug for Clinical Laboratory Analyzers Sample Testers
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 4.5 ~ 6W |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Caze Size: | 53L X 41W X 30H (mm) |
UL 60601 Certified Medical Power Adapter 5V 2A 12V 24V US Plug for Clinical Laboratory Analyzers Sample Testers
UL 60601 certified medical-grade power adapter delivering triple output: 5V 2A, 12V, and 24V with US plug for critical laboratory equipment. Engineered to power clinical analyzers, sample testers, and diagnostic instruments requiring stable, uninterrupted energy in laboratory environments. Features medical-grade isolation, over-voltage protection, and electromagnetic compatibility to prevent interference with sensitive testing equipment. FCC certified with thermal protection and precise voltage regulation ensuring reliable operation for 24/7 laboratory use where power stability directly impacts test accuracy and sample integrity. Compact design meets hospital safety standards for clinical lab settings demanding certified performance and equipment protection.
• Power Range: 4.5~6W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~18 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 53L x 41W x 30H (mm)
• Weight: 70g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM05UA | 6W | 5-18V | 0A | 1.2A | ±5% | ±1% | 100mV |
| APM05UB | 6W | 9-12V | 0A | 0.66A | ±5% | ±1% | 180mV |
| APM05UC | 4.5W | 9V | 0A | 0.5A | ±5% | ±1% | 180mV |
| APM05UD | 6W | 9V | 0A | 0.67A | ±5% | ±1% |
180mV |
