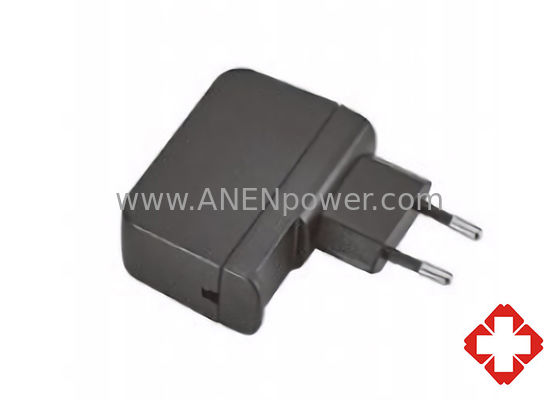

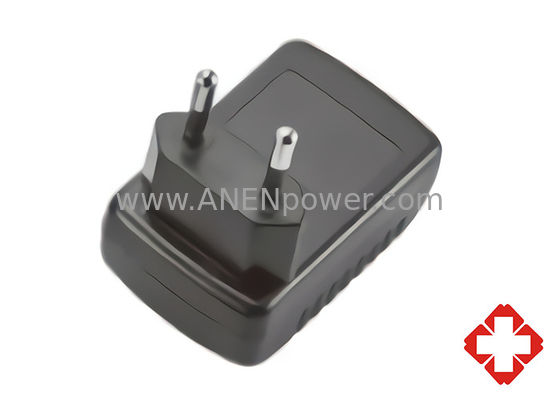

EN/IEC 60601 Certified 12V 2A 24V 1A 9V Medical Power Supply (EU Plug) – For Dental LED Curing Lights and Whitening Devices
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 15 ~ 24W |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 66.5L X 26W X 45.5H(mm) |
EN 60601 Certified Medical Power Supply 12V 2A 24V 1A 9V EU Plug for Dental LED Curing Lights Whitening Devices
EN/IEC 60601 certified medical-grade power supply delivering precise triple voltage output: 12V 2A, 24V 1A, and 9V specifically engineered for professional dental equipment including LED curing lights and teeth whitening systems. This CE certified adapter features EU plug compatibility and medical-grade isolation barriers to ensure safe, uninterrupted operation in dental clinics and practices. Built with over-voltage protection, thermal management, and electromagnetic compatibility to prevent interference with sensitive dental devices during critical procedures. The compact design provides stable voltage regulation for consistent light intensity and treatment effectiveness, meeting stringent European medical safety standards for dental applications where power reliability directly impacts patient treatment outcomes and equipment performance in professional dental environments.
• Power Range: 15~24W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz

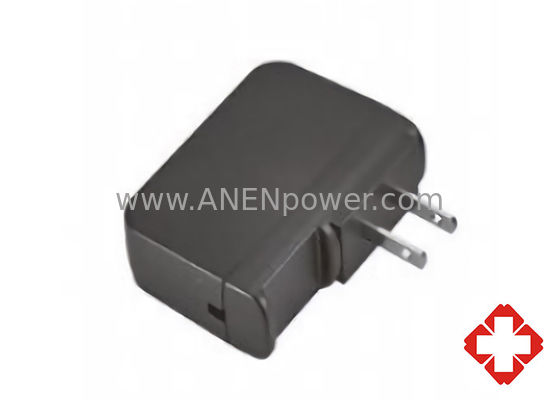

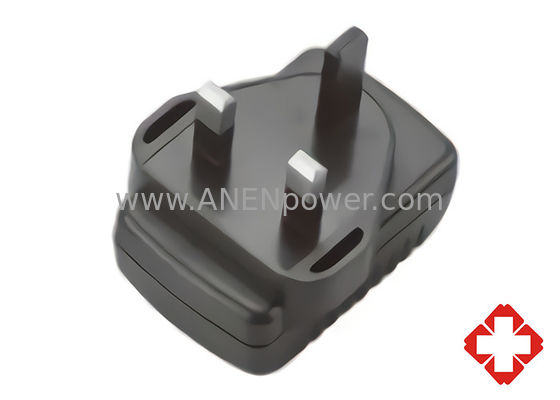

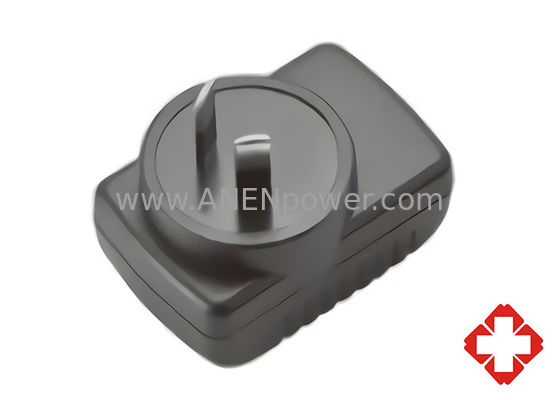

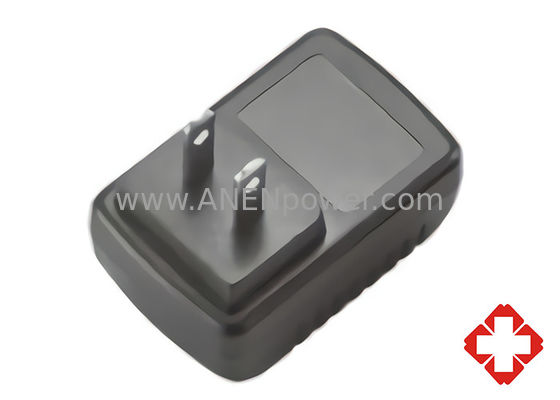

• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 66.5L x 26W x 45.5H(mm)
• Weight: 120g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM19EA | 15W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM19EB | 20W | 9-13V | 0A | 2.0A | ±5% | ±1% | 180mV |
| APM19EC | 20W | 14-19V | 0A | 1.42A | ±5% | ±1% | 200mV |
| APM19ED | 20W | 20-27V | 0A | 1.0A | ±5% | ±1% | 250mV |
| APM19EE | 20W | 28-35V | 0A | 0.71A | ±5% | ±1% | 280mV |
| APM19EF | 20W | 36-48V | 0A | 0.55A | ±5% | ±1% | 360mV |
| APM19EG | 18W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM19EJ | 24W | 9-13V | 0A | 2.0A | ±5% | ±1% | 180mV |
| APM19EK | 24W | 14-19V | 0A | 1.71A | ±5% | ±1% | 200mV |
| APM19EL | 24W | 20-27V | 0A | 1.2A | ±5% | ±1% | 250mV |
| APM19EM | 24W | 28-35V | 0A | 0.85A | ±5% | ±1% | 280mV |
| APM19EN | 24W | 36-48V | 0A | 0.66A | ±5% | ±1% | 360mV |
| NOTED: | |||||||
| 1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. | |||||||
| 2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. | |||||||
| 3 : Max. Power (W) = Vo x Io | |||||||
