UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems

China UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems supplier
UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems supplier UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems supplier UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems supplier UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems supplier

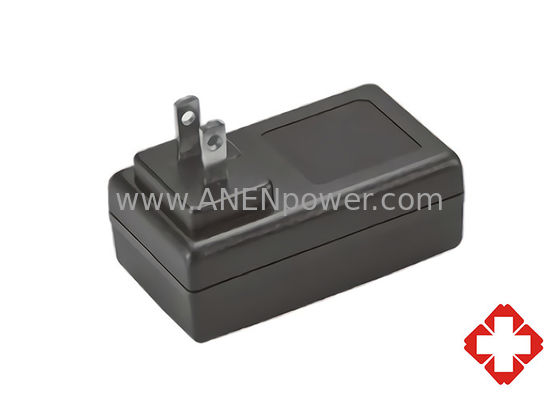

Large Image :  UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems

Product Details:

Place of Origin: Shenzhen
Brand Name: ANENpower
Certification: UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA
Model Number: APM24U

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Please contact our Sales
Packaging Details: PE bag / White box / Custom made
Delivery Time: 18~25 working days after receiving the deposit
Payment Terms: 50% deposit, 50% before dispatch
Supply Ability: 500,000.00pcs/month
Contact Now
Detailed Product Description
Input Range: 100 ~ 240Vac, 50 / 60Hz Power Range: 16 ~ 36W
Certificates: UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA Application: Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc.
MTBF: 100,000 Calculated Hours Case Size: 76L X 43W X 30H (mm)

UL 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V US Plug for EEG Monitoring Systems



UL/IEC 60601 certified medical-grade power adapter delivering precise triple voltage output: 12V 3A, 24V 1.5A, and 36V specifically engineered for EEG electroencephalogram monitoring systems. This US plug adapter features hospital-grade isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure accurate brainwave monitoring and uninterrupted operation in clinical environments. Designed for neurology departments, sleep clinics, and diagnostic facilities, the power supply provides stable voltage regulation and thermal protection for continuous EEG recordings where power reliability directly impacts diagnostic accuracy and patient neurological assessments. FCC certified with medical-grade safety standards, this compact adapter meets stringent requirements for critical neurological monitoring equipment requiring certified performance and electrical safety in professional healthcare applications.



• Power Range: 16~36W

• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC

• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 76L x 43W x 30H (mm)
• Weight: 200g



Model NO. MAX OUTPUT POWER OUTPUT VOLTAGE MIN LOAD MAX LOAD LOAD REGULATION LINE REGULATION RIPPLE & NOISE
APM24UA 16W 5-8V 0A 2.0A ±5% ±1% 100mV
APM24UB 18W 5-8V 0A 3.0A ±5% ±1% 100mV
APM24UC 20W 5-8V 0A 4.0A ±5% ±1% 100mV
APM24UD 24W 9-11V 0A 1.5A ±5% ±1% 250mV
APM24UE 27W 9-11V 0A 2.0A ±5% ±1% 250mV
APM24UF 20W 9-11V 0A 3.0A ±5% ±1% 250mV
APM24UG 30W 12-17V 0A 1.66A ±5% ±1% 250mV
APM24UH 24W 12-17V 0A 2.5A ±5% ±1% 250mV
APM24UJ 30W 18-24V 0A 1.33A ±5% ±1% 350mV
APM24UK 30W 18-24V 0A 1.66A ±5% ±1% 350mV
APM24UL 20W 36-48V 0A 0.55A ±5% ±1% 480mV
APM24UM 30W 36-48V 0A 0.83A ±5% ±1% 480mV
APM24UN 36W 12V 0A 3.0A ±5% ±1% 250mV
APM24UP 24W 12V 0A 2.0A ±5% ±1% 250mV
APM24UQ 36W 24V 0A 1.5A ±5% ±1% 350mV
NOTED:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) = Vo x Io
