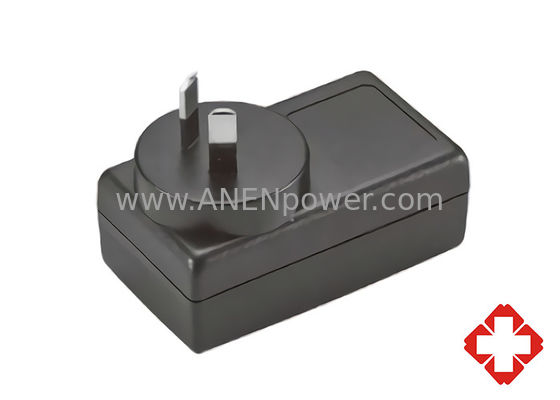

EN 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V AU Plug for Urine Analyzers Clinical Chemistry Devices
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input Range: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 16 ~ 36W |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 76L X 43W X 30H (mm) |
EN 60601 Certified Medical Power Adapter 12V 3A 24V 1.5A 36V AU Plug for Urine Analyzers Clinical Chemistry Devices
EN/IEC 60601 certified medical-grade power supply delivering triple voltage output: 12V 3A, 24V 1.5A, and 36V specifically engineered for urine analyzers and clinical chemistry diagnostic equipment. This Australian plug adapter features medical-grade isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure accurate laboratory test results and safe operation in clinical environments. Designed for pathology labs, diagnostic centers, and medical facilities, the power supply provides stable voltage regulation and thermal protection for continuous operation where power reliability directly impacts test accuracy and patient diagnosis. CE/RCM certified with hospital-grade safety standards, this compact power solution meets stringent medical requirements for critical laboratory equipment requiring certified performance and electrical safety in professional healthcare applications.
• Power Range: 16~36W
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz

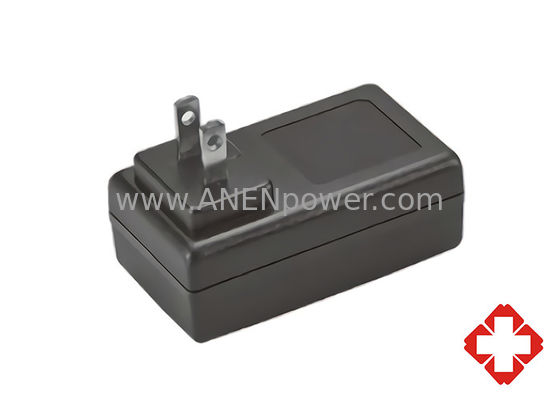

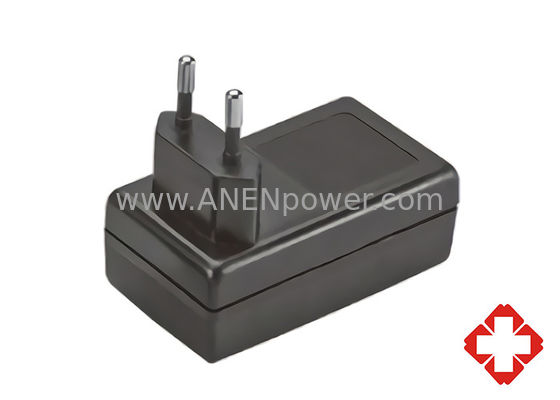

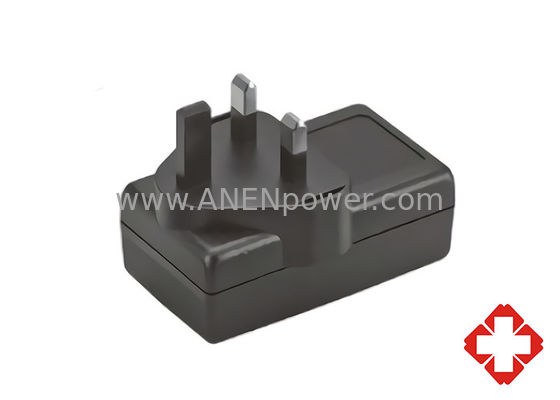

• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 76L x 43W x 30H (mm)
• Weight: 200g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM24AA | 16W | 5-8V | 0A | 2.0A | ±5% | ±1% | 100mV |
| APM24AB | 18W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM24AC | 20W | 5-8V | 0A | 4.0A | ±5% | ±1% | 100mV |
| APM24AD | 24W | 9-11V | 0A | 1.5A | ±5% | ±1% | 250mV |
| APM24AE | 27W | 9-11V | 0A | 2.0A | ±5% | ±1% | 250mV |
| APM24AF | 20W | 9-11V | 0A | 3.0A | ±5% | ±1% | 250mV |
| APM24AG | 30W | 12-17V | 0A | 1.66A | ±5% | ±1% | 250mV |
| APM24AH | 24W | 12-17V | 0A | 2.5A | ±5% | ±1% | 250mV |
| APM24AJ | 30W | 18-24V | 0A | 1.33A | ±5% | ±1% | 350mV |
| APM24AK | 30W | 18-24V | 0A | 1.66A | ±5% | ±1% | 350mV |
| APM24AL | 20W | 36-48V | 0A | 0.55A | ±5% | ±1% | 480mV |
| APM24AM | 30W | 36-48V | 0A | 0.83A | ±5% | ±1% | 480mV |
| APM24AN | 36W | 12V | 0A | 3.0A | ±5% | ±1% | 250mV |
| APM24AP | 24W | 12V | 0A | 2.0A | ±5% | ±1% | 250mV |
| APM24AQ | 36W | 24V | 0A | 1.5A | ±5% | ±1% | 350mV |
| NOTED: | |||||||
| 1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. | |||||||
| 2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. | |||||||
| 3 : Max. Power (W) = Vo x Io | |||||||
