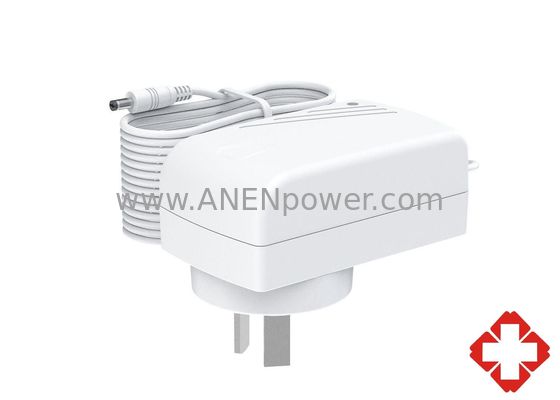

EN 60601 Certified Medical Power Adapter 12V 2A 24V 9V 1A AU Plug for Fetal Doppler Pregnancy Monitoring Equipment
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240Vac, 50 / 60Hz | Power Range: | 24W Max |
|---|---|---|---|
| Certificates: | UL/cUL 60601-1, TUV EN 60601-1, CB IEC 60601-1, FCC, CE, PSE, UKCA | Application: | Breath Detectors/testers, ECG, EEG, Portable Medical Devices, Medical Tablets, Digital Blood Pressure Monitors, Etc. |
| MTBF: | 100,000 Calculated Hours | Case Size: | 60.5L X 39W X 26.5H (mm) |
EN 60601 Certified Medical Power Adapter 12V 2A 24V 9V 1A AU Plug for Fetal Doppler Pregnancy Monitoring Equipment
EN/IEC 60601 certified medical-grade power supply delivering triple voltage output: 12V 2A, 24V AC, and 9V 1A specifically engineered for fetal Doppler devices and pregnancy monitoring systems. This Australian plug adapter features medical-grade isolation barriers, over-voltage protection, and electromagnetic compatibility to ensure accurate fetal heart rate monitoring and safe operation in clinical environments. Designed for maternity clinics, obstetrics departments, and prenatal care facilities, the power adapter provides stable voltage regulation and thermal protection for continuous monitoring sessions where power reliability directly impacts maternal and fetal health assessments. CE certified with hospital-grade safety standards, this compact power solution meets stringent medical requirements for critical prenatal diagnostic equipment requiring certified performance and electrical safety in professional healthcare applications.
• Power Range: 24W max
• Universal AC Input 100~240 VAC
• Frequency: 50~60Hz
• AC Plug type: U:USA, E:EU, K:UK, A: AU
• Output voltage available from 5~48 VDC
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LPS Compliance
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
• Safety: UL/cUL, UL60601, TUV EN60601, CB 60601, CE, FCC
• All models meet RoHS and WEEE
• Dimension(L x W x H): 60.5L x 39W x 26.5H (mm)
• Weight: 120g
| Model NO. | MAX OUTPUT POWER | OUTPUT VOLTAGE | MIN LOAD | MAX LOAD | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
| APM24AA | 15W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM24AB | 20W | 9-13V | 0A | 2.0A | ±5% | ±1% | 180mV |
| APM24AC | 20W | 14-19V | 0A | 1.42A | ±5% | ±1% | 200mV |
| APM24AD | 20W | 20-27V | 0A | 1.0A | ±5% | ±1% | 250mV |
| APM24AE | 20W | 28-35V | 0A | 0.71A | ±5% | ±1% | 280mV |
| APM24AF | 20W | 36-48V | 0A | 0.55A | ±5% | ±1% | 360mV |
| APM24AG | 18W | 5-8V | 0A | 3.0A | ±5% | ±1% | 100mV |
| APM24AJ | 24W | 9-13V | 0A | 2.0A | ±5% | ±1% | 180mV |
| APM24AK | 24W | 14-19V | 0A | 1.71A | ±5% | ±1% | 200mV |
| APM24AL | 24W | 20-27V | 0A | 1.2A | ±5% | ±1% | 250mV |
| APM24AM | 24W | 28-35V | 0A | 0.85A | ±5% | ±1% | 280mV |
| APM24AN | 24W | 36-48V | 0A | 0.66A | ±5% | ±1% | 360mV |
| NOTED: | |||||||
| 1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. | |||||||
| 2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. | |||||||
| 3 : Max. Power (W) = Vo x Io | |||||||
