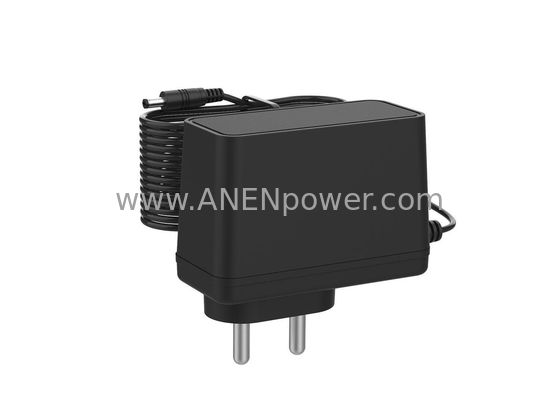

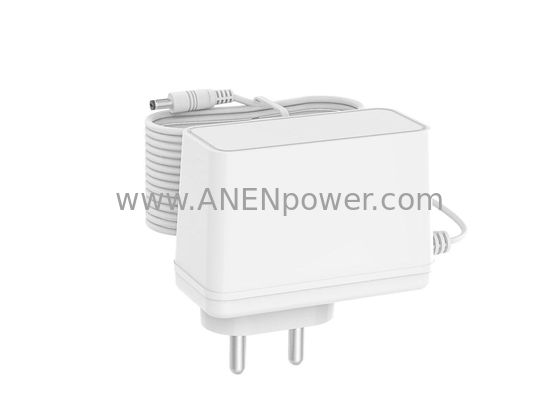

BIS Certified 24W India Plug AC DC Adapter - 12V 2A / 24V 1A Vertical Switching Power Supply
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240V AC , 50 / 60Hz | Output Power: | 24W Max |
|---|---|---|---|
| Output Range: | 5 ~ 48V / 500mA ~ 3000mA | Safety Approvals: | UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA |
| Standard: | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 | Warranty: | 3~5 Years |
| AC Plug: | EU / US / UK / AU And Others For Your Selection | Application: | Consumer Electronic Devices · Telecommunication Devices · Office Facilities · Industrial Equipments |
BIS Certified 24W India Plug AC DC Adapter - 12V 2A / 24V 1A Vertical Switching Power Supply
This 24W vertical switching power supply is BIS certified and equipped with a standard India plug, complying with strict Indian safety and performance regulations. It delivers dual voltage outputs—12V 2A and 24V 1A—to reliably power a variety of devices, from consumer electronics and small appliances to office gadgets and hobby equipment.
The compact vertical design saves socket space while ensuring stable, consistent power delivery. With a perfect fit for Indian standard outlets, it’s ideal for home, office, or daily use—combining BIS-certified safety, multi-device compatibility, and durable construction to meet all your AC/DC power needs.
1, Extreme small and space-saving, takes up one spot on power strip
2, AC input power suitable for the world
3, Meet DOE/CEC/ERP Level VI
4, Over voltage, over current, short circuit and over load protection
5, Per pieces adapter is 100% full load -burn in test (4 hours)
6, All the products have passed the full load test process aging
7, Low interference & noise
8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347
9, Certification: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA
| Datasheet | |
| Input | 100 to 240V AC , 50 / 60Hz |
| Output power | 24W max |
| Output Range | 5 ~ 48V / 500mA ~ 3000mA |
| Protection | Over load protection |
| Over voltage protection | |
| Short circuit protection | |
| Safety Approvals | UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA |
| Standard | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 |
| Efficiency | Compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5 |
| AC plug | EU / US / UK / AU and Others for your selection |
| Standard DC Connector | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside |
| Operating Temperature Range | 0--40°C |
| Storage Temperature Range | -20 --- 85°C |
| High Humidity Operation | + 40 °C and 90 ~ 95% Humidity |
| Net weight | About 120g per unit |
| MTBF | 50,000 hours |
| Application | Consumer electronic devices · Telecommunication devices · Office facilities · Industrial equipments |
| Packing | PE bag + Carton or White Box + Carton or As your Request |
