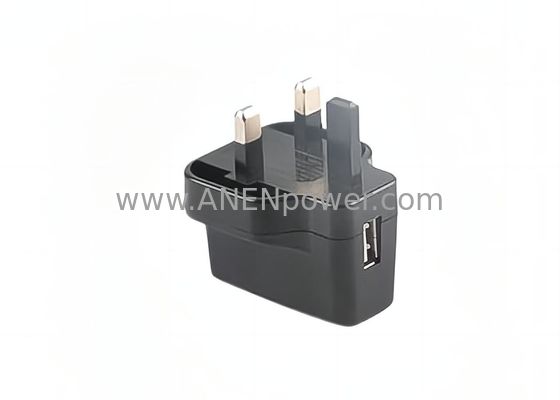

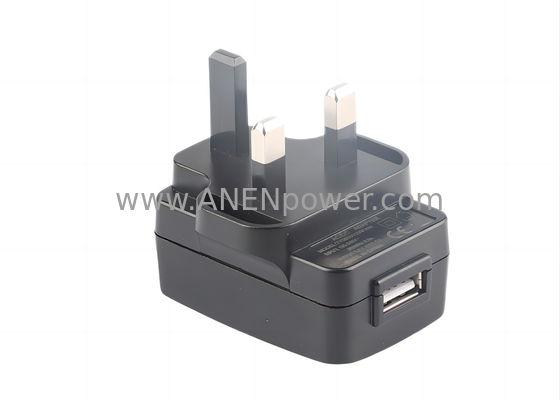

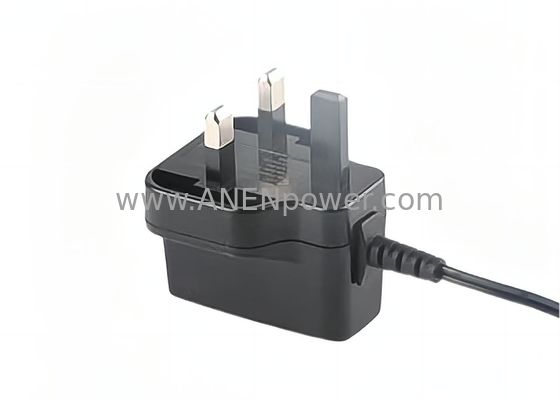

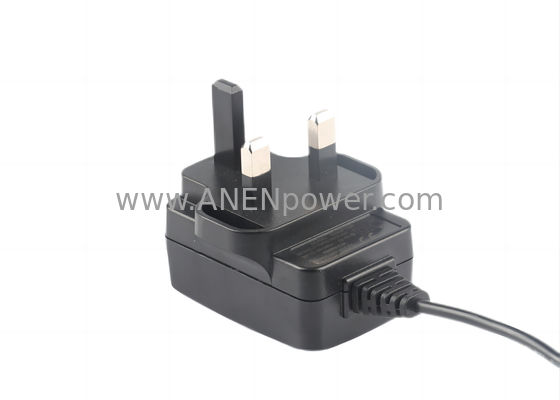

6W UKCA Certified UK 5V DC 1000mA 100-240v AC 50/60hz Power Supply Adapter Charger Plug 3pin
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | 100 ~ 240V AC , 50 / 60Hz | Output Power: | 6W Max |
|---|---|---|---|
| Output Range: | 5 ~ 12V / 500mA ~ 1200mA | Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
| Standard: | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 | Warranty: | 3~5 Years |
| AC Plug: | EU / US / UK / AU And Others For Your Selection | Application: | Water Purifier, LED, Medical Machine, CCTV Camera, LCD, Set-top Box, DVR, Router, Modem, Etc . |
UKCA Certified UK 5V DC 1000mA 100-240v AC 50/60hz Power Supply Adapter Charger Plug 3pin
APS06K is a 6W compact size highly reliable wall-mounted style single-output green adaptor series, which is compact and convenient for carry. APS06K is a class II power unit equipped with the standard 3-Pin European plug, accepting the input range from 100VAC to 240VAC. The whole series provides different models with output voltages ranging between 5VDC and 48VDC that it can satisfy the demands for various types of consumer electronic devices.
APS06K is compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazards.
1, Extreme small and space-saving, takes up one spot on power strip
2, AC input power suitable for the world
3, Meet DOE/CEC/ERP Level VI
4, Over voltage, over current, short circuit and over load protection
5, Per pieces adapter is 100% full load -burn in test (4 hours)
6, All the products have passed the full load test process aging
7, Low interference & noise
8, Standard: EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347
9, Certification: UL, FCC, CB, GS, CE, PSE, SAA, RCM, UKCA
| Datasheet | |
| Input: | 100 to 240V AC , 50 / 60Hz |
| Output power: | 6W max |
| Output Range: | 5 ~ 48V / 125mA ~ 1200mA |
| Protection: | Over load protection |
| Over voltage protection | |
| Short circuit protection | |
| Safety Approvals: | UL/CUL, FCC, CE, GS, CB, RCM, SAA, PSE, UKCA |
| Standard: | EN/IEC 62368, EN/IEC 61558, EN/IEC 60601, EN/IEC 61347 |
| Efficiency: | Compliant with the lastest U.S energy regulation EISA 2007/DOE(Level VI), EU ErP and CoC version 5 |
| AC plug: | EU / US / UK / AU and Others for your selection |
| Standard DC Connector: | 5.5*2.5 / 5.5*2.1 /5.5*1.7 / 4.8*1.7 / 4.0*1.7 / 3.5*1.35 / 6.3*3.0 with pin inside |
| Operating Temperature Range: | 0--40°C |
| Storage Temperature Range: | -20 --- 85°C |
| High Humidity Operation: | + 40 °C and 90 ~ 95% Humidity |
| MTBF: | 50,000 hours |
| Application: | Consumer electronic devices · Telecommunication devices · Office facilities · Industrial equipments |
| Packing: | PE bag + Carton or White Box + Carton or As your Request |
